Bernardo Master 360 Pro Universal lathe

• Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
• 52 mm spindle bore to machine large shaft diameters comes standard
• Ideal for processing of steel, non-ferrous materials and plastics
• Removeable bridge allows machining of workpieces with a big diameter
• Chip tray extracts to front, keeping space requirements to a minimum
• Clear arranged speed and feed control settings, smooth operation and accurate control
• Electro-magnetic foot brake reduces downtime
• State-of-the-art spindle bedding with high-quality, angular ball bearings
• Grey cast-iron machine bed, inductive hardened and polished
• High spindle concentricity (≤ 0,009 mm)
• Hardened and polished spindle runs in oil bath
• Tailstock, spindle stock and all guides are adjustable
• Tailstock can be adjusted ± 5 mm for taper turning

Scope of delivery Bernardo Master 360 Pro Universal lathe​

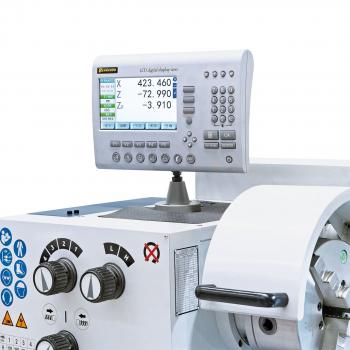

• 3-axis digital display i200 with LCD display
• 3-jaw chuck DK11-200 mm / D5

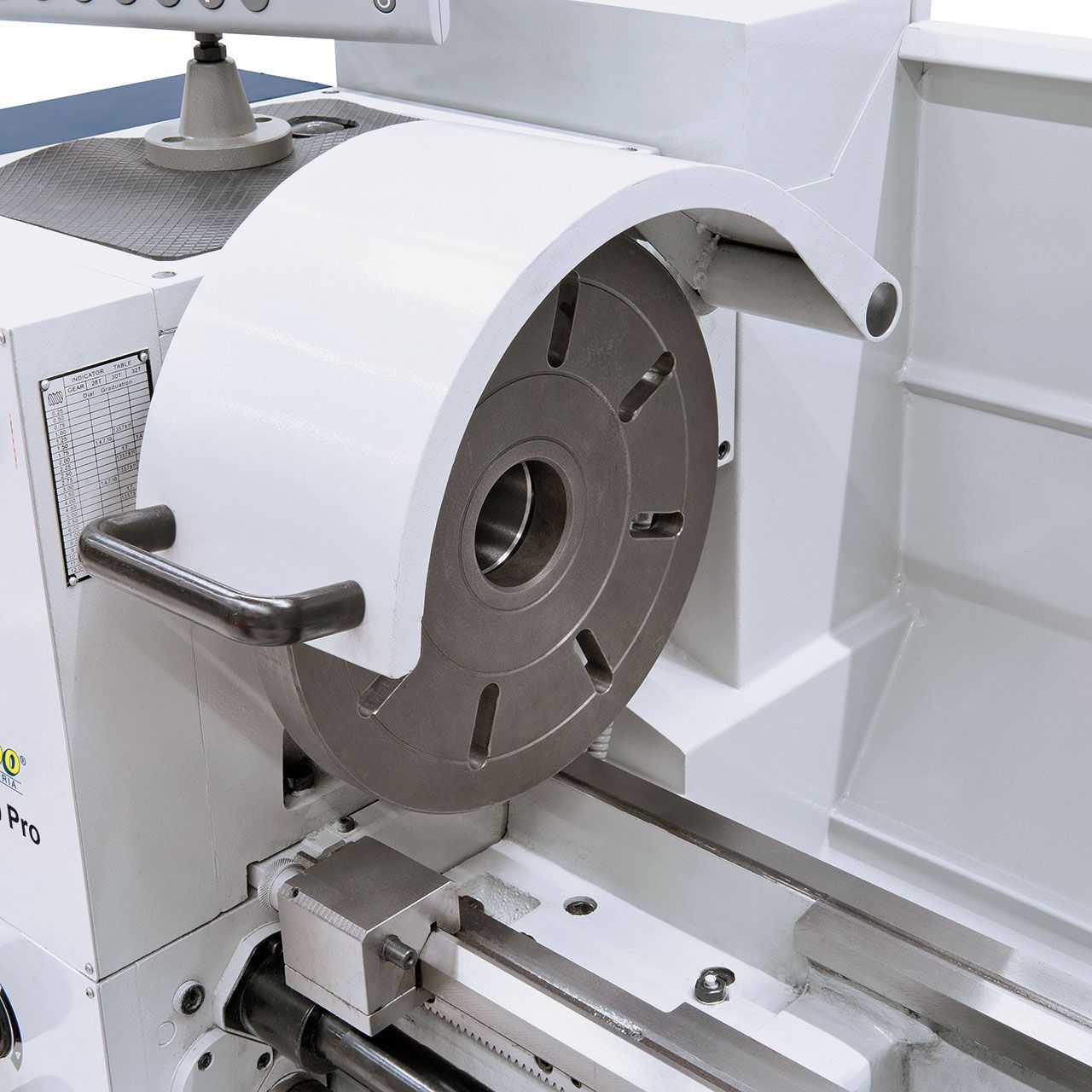

• Faceplate 200 mm / D5, according to DIN 55029
• Fixed steady rest - passage diam. max. 70 mm
• Travelling steady rest - passage diam. max. 60 mm
• Coolant system
• Initial filling with Shell Tellus 46
• Pull-out chip tray
• Clamping disc 280 mm
• Quadruple toolholder

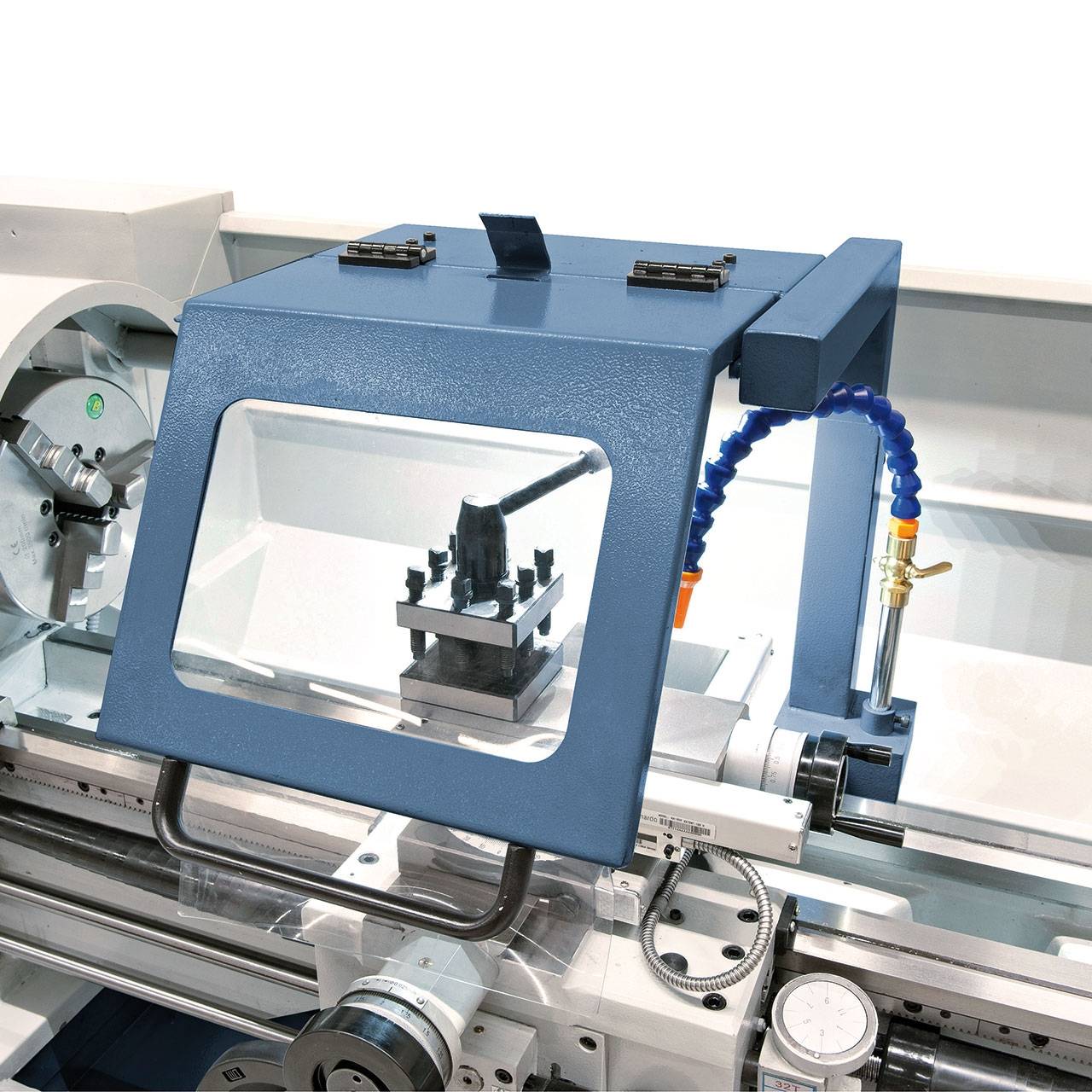

• Protective device for quadruple toolholder
• Slipping clutch
• Micrometer longitudinal stop
• Threaded clock
• LED machine light
• Reducing sleeve
• Change gears
• 2 centring points
• Foot pedal with brake function according to CE
• Motor with magnetic brake according to CE standard
• Underframe with drawers
• Operating tool

Available special accessories Bernardo Master 360 Pro Universal lathe​

• 4-jaw chuck DK12-200 mm / D5, according to DIN 55029 (Art. No. 21-0834)
• Soft monobloc jaws DSJ-DK11-200 (Art. No. 21-0854)
• Soft top jaws DSTJ-DK11-200 (Art. No. 21-0878)
• Base jaws DMJ-DK11-200 (Art. No. 21-0900)
• Reversible top jaws DTJ-DK11-200 (Art. No. 21-0922)
• Soft monobloc jaws DSJ-DK12-200 (Art. No. 21-0867)
• Chuck flange FL 200 mm according to DIN 55029, D1-5 (Art. No. 21-4056)
• Travelling centre punch type PC, MK 4 (Art. No. 22-1003)
• Incl. grainsp. type SMA, MK 4 incl. 7 inserts (Art. No. 22-1042)
• Travelling centering cone MK 4 - 125 mm (Art. No. 22-1060)

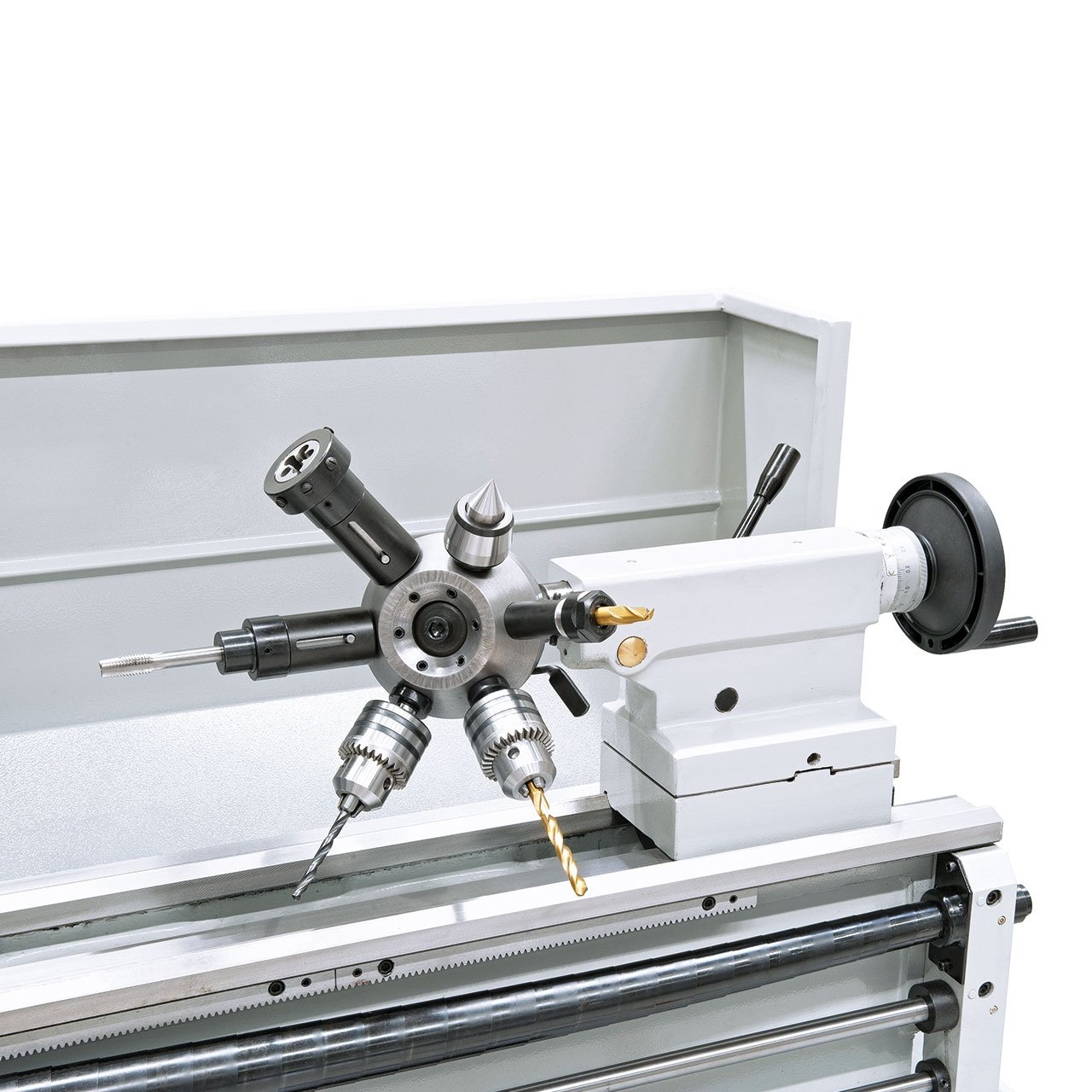

• Turret MK 4 with 6 stations (Art. No. 22-1072)
• Inserts for turret MK 4 (Art. No. 22-1077)
• Collet chuck 5C, D1-5 (Art. No. 22-1093)
• Collet set 5C, 3 - 26 mm, 24 pcs. (Art. No. 22-1097)
• Quick change tool holder System Multifix, size E (Art. No. 23-1001)
• Factory assembly quick-change holder** (Art. No. 23-1092)
• Interchangeable holder with straight insert for size E, 25 x 100 mm (Art. No. 23-1006E2)
• Keyless drill chuck 1 - 16 mm / B 16 (Art. No. 24-1082)
• Turning tool set with HM inserts, 16 mm, 7 pcs. (Art. No. 44-3086)
• Center Drill 12 pcs. (Art. No. 41-1070)
• Machine shoe MS 80 (Art. No. 53-2000)
• Universal coolant concentrate RK 12, in 5 l canister (Art. No. 54-1206)

Technical specifications Bernardo universal lathe with digital display Master 360 Pro:
