Bernardo manual sawing machine CS 275 H
The CS 275 H manual metal circular saws feature 2 speed settings, making them ideal models for sawing of profiles, pipes and solid iron, stainless steel and non-ferrous metal. The solid construction, precise cutting results and high user friendliness make these machines essential for metal workshops.
Properties Bernardo manual sawing machine CS 275 H
- Gear head swivels 90º to both sides for slotting
- Removeable coolant tank integrated in solid machine base
- Gear unit features hardened, polished worm shaft and bronze worm wheel
- Protective cover opens automatically when cutting

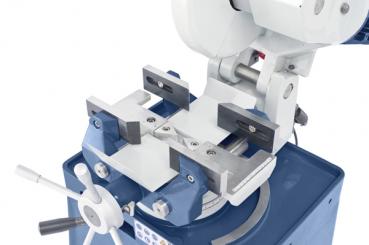

- Precise, self-centering double-clamping vice positioned on four guidings
- Ergonomically shaped handle with push button for high work comfort
- Reduction gear unit, quietly running in oil bath
Standard accessories Bernardo manual sawing machine CS 275 H
- Coolant device with filter
- Self-centering vice
- Stand
Technical specifications Bernardo manual sawing machine CS 275 H
| Sawblade dimensions | 275 x 40 mm |
| Speeds | 48 / 96 rpm |
| Max. opening | 110 mm |
| Working height | 900 mm |
| Motor power output S1 100% | 1,4 / 2,0 kW |
| Motor power input S6 40% | 2,0 / 2,8 kW |
| Voltage | 400 V |
| Machine dimensions (L x D x H) | 460 x 840 x 1740 mm |
| Weight approx. | 175 kg |
|
|
Full rivet |
Pipe |
Pipe |
Full rivet |
Pipe |
Full rivet material |
| 90° | 70 mm | 70 mm | 70 x 70 mm | 70 x 70 mm | 70 x 60 mm | 70 x 60 mm |
| 45° | 60 mm | 60 mm | 60 x 60 mm | 60 x 60 mm | 80 x 50 mm | 70 x 50 mm |
