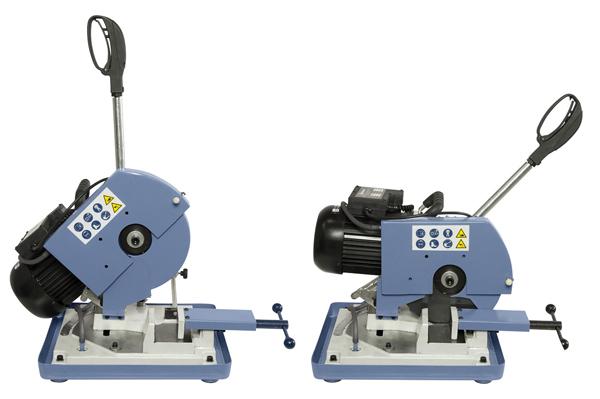

Bernardo manual sawing machine CS 225
The CS 225 compact portable saw features a light-weight construction and practical size to make it ideal for the use at building sites and assembly works.
Properties Bernardo manual sawing machine CS 225
- Solid reduction gearbox running in oil bath
- Automatic coolant membrane pump comes complete with coolant filter
- Suitable for cutting of profiles, pipes and solid materials etc.
- Cast iron base features integrated coolant tank (approx. 1.5 l capacity)
- Ergonomic control handle includes safety switch
- High-quality materials ensure smooth, vibration-free run
- Large range of applications guarantees optimal price-benefit ratio
- Includes workpiece fence to increase efficiency
Standard accessories Bernardo manual sawing machine CS 225
- Sawblade HSS 225 x 2,0 x 32 mm, 150T
- Coolant device with filter
- Material fence
Technical specifications Bernardo manual sawing machine CS 225
| Sawblade dimension | 225 x 32 mm |
| Speed | 86 rpm |
| Max. opening | 70 mm |
| Coolant capacity approx. | 1,5 l |
| Motor power output S1 100% | 1,1 kW |
| Motor power input S6 40% | 1,5 kW |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 570 x 650 x 720 mm |
| Weight approx. | 33 kg |
|
|
Pipe |
Pipe |
Pipe | Full rivet material round |
Full rivet material |
| 90° | 60 mm | 60 x 60 mm | 70 x 60 mm | 45 mm | 40 x 40 mm |
| 45° left | 60 mm | 55 x 55 mm | 70 x 55 mm | 45 mm | 40 x 40 mm |
