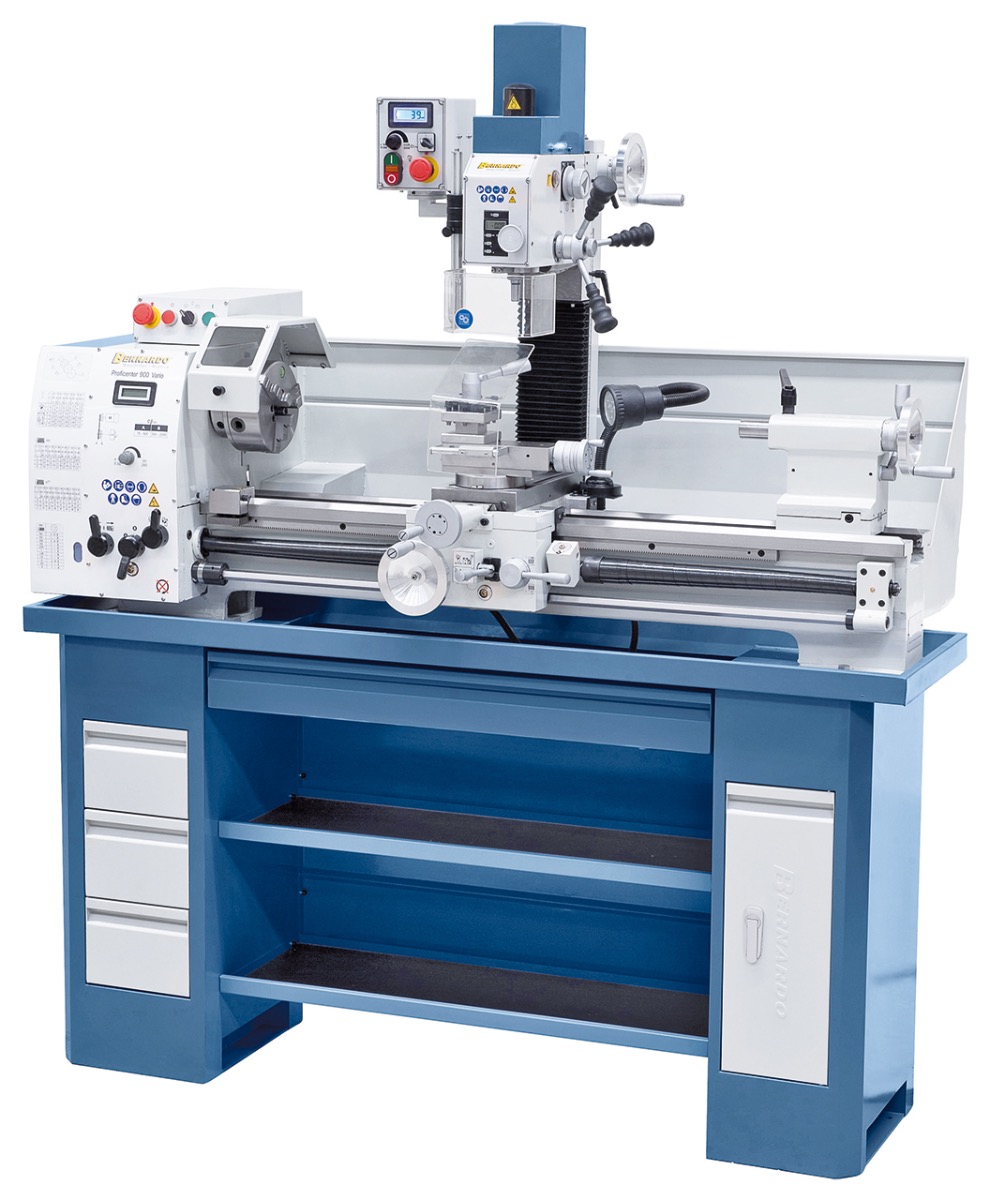

Bernardo machining centre Proficenter 900 Vario 400 V

Bernardo machining centre Proficenter 900 Vario 400 V

4.841,10 EUR

Description

Features Bernardo machining centre Proficenter 900 Vario 400 V

Three-phase motor with frequency converter for higher power output and high torque
Standard with 38 mm spindle bore for machining large shaft diameters
Versatile application possibilities: Precision mechanics, training and apprenticeship workshops, ...
With infinitely variable speed control as standard, the set speed is read off a digital display
The feed adjustment is simple, smooth and precise
Ideally suited for processing steel, non-ferrous materials and plastics
Prism bed with large contact surface, inductively hardened and ground
Precise spindle bearing arrangement with two adjustable precision tapered roller bearings
Milling attachment with digital display for quill stroke and speed
Milling head swivelling on both sides for angle drilling, milling of chamfers, etc.

Lathe
Top of the range	900 mm
Centre height	160 mm
swing over bed	320 mm
Spindle bore	38 mm
Mounting in the spindle bore	DIN 55029, D1-4
Speed range, infinitely variable	75 - 500 / 300 - 2000 rpm
Range longitudinal feeds	(15) 0,07 - 1,0 mm/rev
Plan feed range	(15) 0,017 - 0,25 mm/rev
Metric threads	(18) 0,2 – 3,5 mm
inch thread	(21) 8 - 56 Gg/1
quill path	100 mm
quill mount	MK 3
T-slot size in cross slide	12 mm
Motor output power S1 100%	1.5 KW / 400 V
Motor input power S6 40%	2.2 kW / 400 V
Milling attachment
Max. drilling capacity	20 mm
Face milling cutter max.	63 mm
End mill max.	20 mm
Invitation	170 mm
Spindle speed, infinitely variable	50 - 2250 rpm
Spindle mount	MK 2
Milling head swivels	-90° bis +90°
Height adjustment of milling head	260 mm
Total weight approx.	303 kg
* without base frame
