Our top model Proficenter 700 BQV meets the highest requirements of precision mechanics, workshops etc. Drilling, milling and turning is achievable on smallest space. The machines combine many features, such as a big spindle bore and a digital display for drilling depth and speed. To reduce the non-productive time, this model is also available with a 2-axis digital readout.
Properties Bernardo Machining Centre Proficenter 700 BQV
- Electronic, stepless speed setting allows optimal adjustment to workpiece
- Comes complete with feed rod for automatic longitudinal and cross feed
- Inductive hardened, polished machine bed features a large surface
- Standard 38 mm spindle bore allows machining of shafts with a large diameter
- Manufactured according to strict Bernardo quality regulations
- Tiltable mill head extends application area enormously
- Milling unit features digital display for spindle stroke and speed
- Top slide adjustable along the x-axis
- Right and left milling spindle rotation comes standard
- Handwheel allows fine spindle feed when milling
Standard accessories Bernardo Machining Centre Proficenter 700 BQV
- 3-jaw chuck DK11-160 mm
- Flange 160 mm

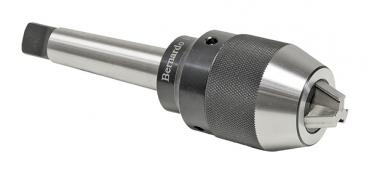

- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 2 / B 16
- Dead center
- Change gears
- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Cross slide with top support
- Digital spindle stroke indication
- Digital speed indication
- Drawbar M 10
- Chuck guard
- Leadscrew cover
- Splash guard
- Tools
Technical specifications Bernardo Machining Centre Proficenter 700 BQV
Turning lathe
Distance between centers
700 mm
Center height
150 mm
Swing over bed
280 mm
Spindle bore
38 mm
Taper at spindle bore
MT 5
Speed range, stepless
50 - 1000 / 100 - 1800 rpm
Longitudinal feed
(14) 0,07 - 0,65 mm/rev.
Cross feed
(11) 0,03 - 0,12 mm/rev.
Metric thread
(18) 0,2 - 3,5 mm
Inch thread
(21) 8 - 56 threads/1"
Travel of tailstock sleeve
85 mm
Taper of tailstock sleeve
MT 3
T-slot size for cross slide
12 mm
Motor power output S1 100%
1,1 kW / 230 V
Motor power input S6 40%
1,5 kW / 230 V
Milling attachment
Drilling capacity max.
20 mm
Face mill capacity max.
63 mm
End mill capacity max.
20 mm
Distance spindle to column
170 mm
Spindle speed
50 - 2250 rpm
Spindle taper
MT 2
Mill head tiltable
-90° to +90°
Mill head height adjustable
260 mm
Motor power output S1 100%
0,60 kW / 230 V
Motor power input S6 40%
0,90 kW / 230 V
Machine dimensions (W x D x H)*
1380 x 640 x 1020 mm
Weight approx.
298 kg
without stand
