The NANOTURN machine is versatile for modellers, electronics, etc. With the optionally available conversion kits, this machine can be quickly and easily converted to another model.
Features Bernardo Leadscrew lathe NANOTURN
- Electronically infinitely variable drive for precise work results
- Guides can be adjusted via tapered bars
- High concentricity due to precision ball bearings
- Exact reading due to large scale rings
- Ground round steel guide for highest possible precision
- Extended range of applications thanks to the optionally available special accessories
- The optional conversion kits allow quick and easy conversion to another model
Scope of delivery Bernardo Leadscrew lathe NANOTURN
- Infinitely variable speed control
- Chuck protection
- Operating tool
- 3-jaw chuck 50 mm
Available probe accessories Bernardo Leadscrew lathe NANOTURN
- Conversion kit turning to milling (Art.No.:03-1586)
- Conversion kit milling to drilling (Item No.:03-1588)
- Conversion kit drilling to turning (Art.No.:03-1591)
- Collet chuck set 6 pcs, 1,2,4,5,6 mm (Art.No.:03-1592)

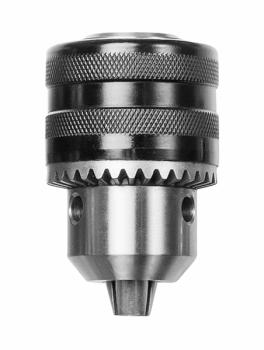

- Gear rim drill chuck 0,6 - 6 mm / B 10 (Art.No.:03-1593)
- Lathe chisel set HSS, 6 x 6 x 60 mm (Art.No.:03-1594)
- Clamping disc diam. 70 mm (Art.No.:03-1595)
- Clamping tool assortment 12 pcs. (Art.No.:03-1596)
- Set of end mills 1,2,4,5,6 mm (Art.No.:03-1597)
- Vice 40 mm (Art.No.:03-1598)
- Rotary table 70 x 25 mm (Art.No.:03-1599)
Technical data Bernardo Leadscrew lathe NANOTURN
|
Peak width
|
100 mm
|
|
Centre height
|
55 mm
|
|
Swing diameter over bed
|
110 mm
|
|
Spindle bore
|
8 mm
|
|
Travel Support
|
40 mm
|
|
Speed range, infinitely variable
|
100 - 4500 rpm
|
|
Engine power
|
0,15 kW / 230 V
|
|
Machine dimension (W x D x H)
|
360 x 250 x 300 mm
|
|
Weight approx.
|
9,2 kg
|
