Bernardo lead screw lathe Profi 450S / 230V
Product Highlights Bernardo Lead Screw Lathe Profi 450S / 230V
The compact lead screw lathe Profi 450 S convinces with its modern design and the powerful drive motor for high torque. The convincing price-performance ratio makes this model ideal for model makers and hobby craftsmen.
- Standard with lead screw for thread cutting or for automatic longitudinal feed
- Solid machine bed with inductively hardened and ground bed guide
- High concentricity of the spindle nose (≤ 0.009 mm) due to precision taper roller bearings

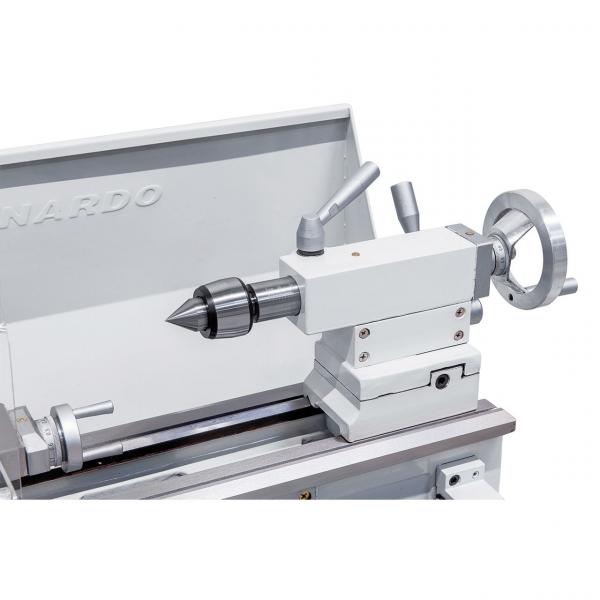

- Tailstock can be adjusted for taper turning
- User-friendly arrangement of the indexing elements
- Guides can be adjusted via taper bars
- Ideally suited for machining steel, non-ferrous materials and plastics
- Versatile application possibilities: Precision mechanics, training and teaching workshops, ...
Scope of delivery Bernardo lead screw lathe Profi 450S / 230V
- 3-jaw chuck 125 mm
- Chuck flange 125 mm
- Face slide with top support
- Fixed centre points

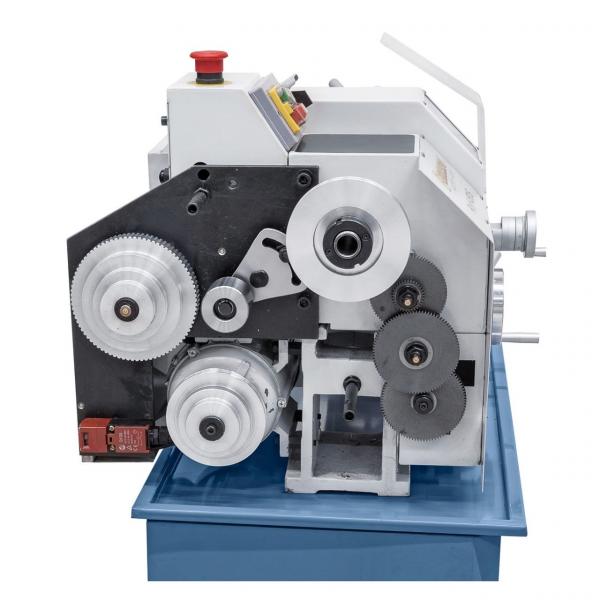

- Change wheels
- Quadruple steel holder
- Chuck guard
- Chip guard
- Lead screw cover
- Operating tool
Technical data Bernardo lead screw lathe Profi 450S / 230V
| Peak width | 450 mm |
| Centre height | 115 mm |
| Swing diameter over bed | 230 mm |
| Bed width | 135 mm |
| Spindle bore | 20 mm |
| Mounting in the spindle bore | MK 3 |
| Speed range | (6) 125 - 2000 rpm |
| Longitudinal feed range | (2) 0.1 - 0.2 mm/rev. |
| Metric threads | (14) 0,4 - 3,5 mm |
| Inch thread | (12) 8 - 44 Gg/1“ |
| Pinole path | 60 mm |
| Spindle sleeve holder | MK 2 |
| Motor output power S1 100% | 0,90 kW / 230 V |
| Motor input power S6 40% | 1,35 kW / 230 V |
| Machine dimension (W x D x H)* | 1000 x 580 x 500 mm |
| Weight approx. | 112 kg |
* without underframe
