Product Highlights Bernardo lead screw lathe Profi 450 S Vario incl. 2-axis digital display
The compact lead screw lathe Profi 450 S / Profi 450 S Vario convinces with its modern design and the powerful drive motor for high torque. The convincing price-performance ratio makes this model ideal for model makers and hobby craftsmen.
- High concentricity of the spindle nose (≤ 0.009 mm) due to precision taper roller bearing
- Standard with lead screw for thread cutting or for automatic longitudinal feed
- Powerful drive motor for high torque, speed range 100 - 2200 rpm
- Versatile application possibilities: Precision mechanics, training and teaching workshops, ...
- Solid machine bed with inductively hardened and ground bed guide
- Tailstock can be adjusted for taper turning
- User-friendly arrangement of the switching elements
- Guides can be adjusted via taper bars
- Optimally suited for machining steel, non-ferrous materials and plastics
- Electronic, infinitely variable speed control, allowing optimum adaptation of cutting speed to the workpiece
Scope of delivery Bernardo lead screw lathe Profi 450 S Vario incl. 2-axis digital display

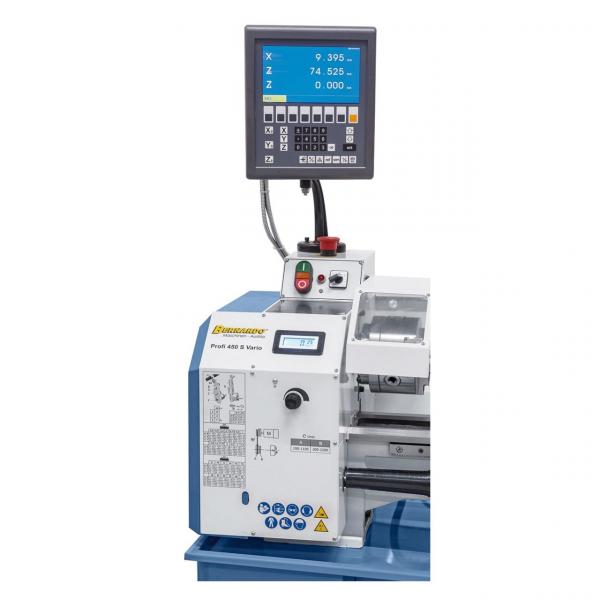

- 2-axis digital display ES-12 V with LCD display

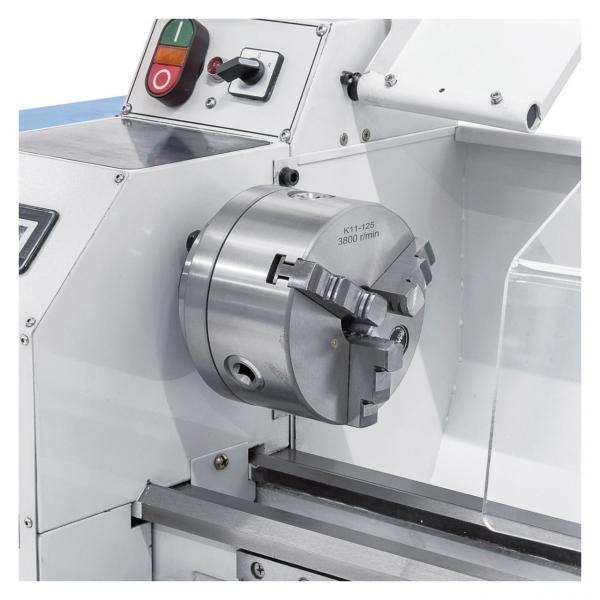

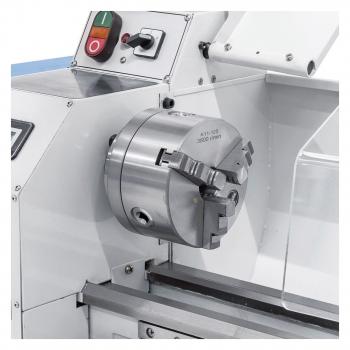

- 3-jaw chuck 125 mm
- Chuck flange 125 mm
- Face slide with top support
- Digital speed display
- Fixed grain tips

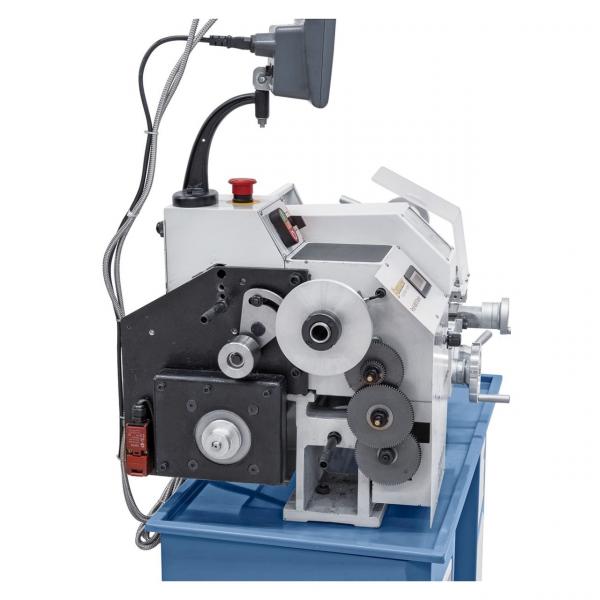

- Change wheels
- Quadruple steel holder
- Chuck guard
- Chip guard
- Lead screw cover
- Operating tool
Technical data Bernardo lead screw lathe Profi 450 S Vario incl. 2-axis digital display
|
Peak width
|
450 mm
|
|
Centre height
|
115 mm
|
|
Swing diameter over bed
|
230 mm
|
|
Bed width
|
135 mm
|
|
Spindle bore
|
20 mm
|
|
Mounting in the spindle bore
|
MK 3
|
|
Speed range, infinitely variable
|
100 - 1100 rpm
|
|
|
200 - 2200 rpm
|
|
Longitudinal feed range
|
(2) 0.1 / 0.2 mm/rev
|
|
Metric threads
|
(14) 0,4 – 3,5 mm
|
|
Inch thread
|
(12) 8 – 44 Gg/1“
|
|
Pinole path
|
60 mm
|
|
Spindle sleeve holder
|
MK 2
|
|
Motor output power S1 100%
|
0,90 kW (230 V)
|
|
Motor input power S6 40%
|
1,35 kW (230 V)
|
|
Machine dimension (W x D x H)*
|
1000 x 580 x 500 mm
|
|
Weight approx.
|
112 kg
|
* without underframe
