The Profi 700 BQV vario lathe is manufactured to toolmaker's precision. The electronically adjustable speed is conveniently read off via a digital display on the gear head. The special feature of this model is also the large longitudinal feed range with 14 freely selectable feeds as well as the standard face feed. To reduce production times, this model is equipped with a 2-axis digital display.
Features Bernardo lathe Profi 700 BQV incl. 2-axis digital display
- With electronically infinitely variable speed control as standard
- Standard with traction spindle for automatic longitudinal and cross feed
- Thermal monitoring incl. warning lamp protects the motor from overload
- High concentricity of the spindle nose (≤ 0.009 mm) due to precision bearings
- Solid machine bed with inductively hardened and ground bed guide
- Powerful drive motor, even during longer operation
- Standard with lead screw for thread cutting
- Tailstock can be moved for taper turning
- User-friendly arrangement of the switching elements
- Movable top slide in x-axis direction
- Guides can be adjusted backlash-free via taper bars
- With 38 mm spindle bore as standard
Scope of delivery Bernardo lathe Profi 700 BQV incl. 2-axis digital display
- 2-axis digital display i200 with LCD display

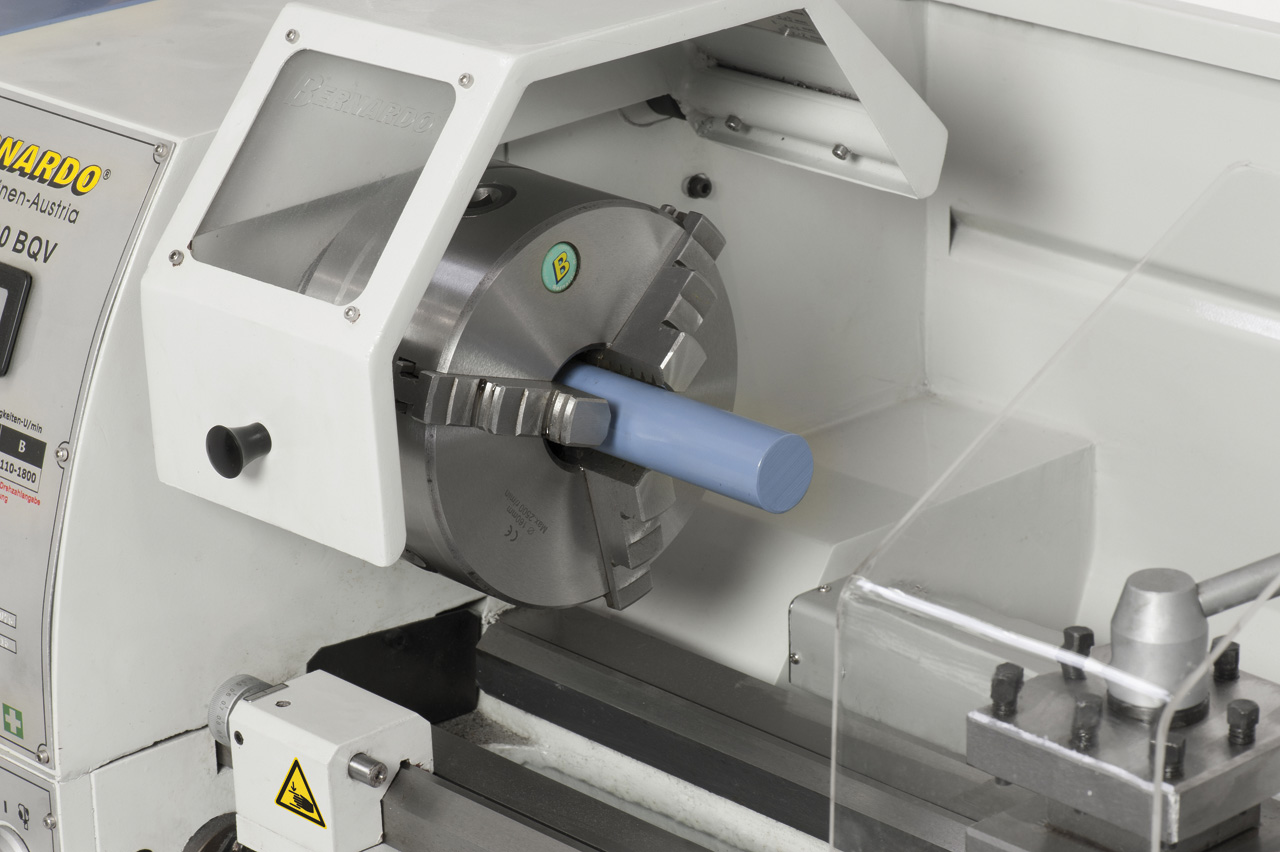

- 3-jaw chuck DK11-160 mm
- Chuck flange 160 mm
- Fixed centre points
- Change wheels
- Quadruple steel holder
- Slipping clutch
- Micrometer longitudinal stop
- Cross slide with top support
- Digital speed indicator
- Threaded clock
- Chuck guard
- Chip guard
- Spindle cover
- Operating tool
Technical data Bernardo lathe Profi 700 BQV incl. 2-axis digital display
|
Peak width
|
700 mm
|
|
Centre height
|
140 mm
|
|
Swing diameter over bed
|
280 mm
|
|
Spindle bore
|
38 mm
|
|
Mounting in the spindle bore
|
MK 5
|
|
Speed range, infinitely variable
|
50 - 850 / 110 - 1800 rpm
|
|
Longitudinal feed range
|
(14) 0,07 - 0,65 rpm
|
|
Area Plan Advances
|
(11) 0,03 - 0,12 rpm
|
|
Metric threads
|
(18) 0,2 - 3,5 mm
|
|
Inch thread
|
(21) 8 - 56 Gg/1“
|
|
Pinole path
|
85 mm
|
|
Spindle sleeve holder
|
MK 3
|
|
Motor output power S1 100%
|
1,1 kW / 230 V
|
|
Motor input power S6 40%
|
1,5 kW / 230 V
|
|
Machine dimension (W x D x H)*
|
1380 x 640 x 500 mm
|
|
Weight approx.
|
235 kg
|
