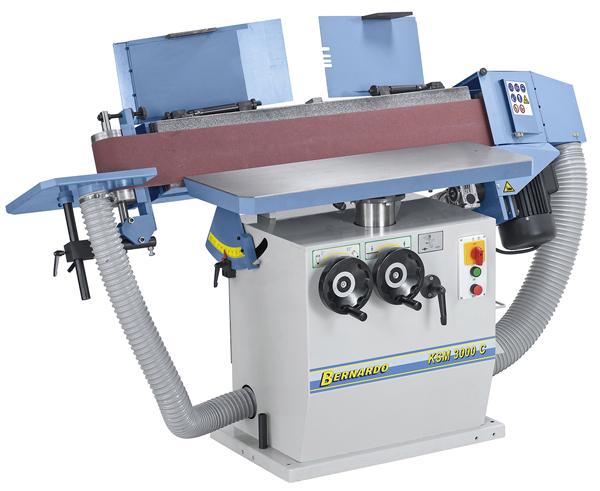

Bernardo KSM 3000 C Edge grinder
Properties Bernardo KSM 3000 C Edge grinder
- Heavy machine stand in torsion- and vibration-free construction, extremely solid
- Grooved infeed ruler, optimal for sanding of excess veneer
- Dust port 80 / 100 mm on both sides for optimal chip removal
- Oscillating sanding belt guarantees sufficient removal and even results
- Maintenance-free sanding belt oscilliation with seperate drive motor can be switched on
- Height adjustable sanding table allows usage of entire sanding belt
- Comes with veneer sanding device with fine adjustment
- Quick conversion from veneer to solid timber sanding
- Handwheels allow for height adjustment of work table and tilting of sanding unit
- Spring balanced belt tension ensures automatic adjustment of differences in sanding belt lengths
- Height adjustable support table for sanding of a radius features dust extraction
Standard accessories Bernardo KSM 3000 C Edge grinder:
- Sanding belt 3000 x 150 mm - grit 100
- Sanding belt oscillation
- Veneer sanding device
- Support table
- Graphite coating
- Mitre fence
- Sanding pad
- Tube
Technical specifications Bernardo KSM 3000 C Edge grinder:
|
Work table |
960 x 350 mm |
|
Table height adjustment |
210 mm |
|
Belt length |
3000 mm |
|
Belt width |
150 mm |
|
Sanding table |
1060 x 200 mm |
|
Sanding unit tiltable |
90° - 45° |
|
Belt speed |
20 m/sec. |
|
Supporting table |
330 x 330 mm |
|
Oscillation stroke |
20 mm |
|
Oscillation motor |
0,25 kW (0,34 HP) |
|
Dust extraction outlet |
120 mm |
|
Motor power output S1 100% |
3,0 kW (4,0 HP) |
|
Motor power input S6 40% |
4,5 kW (6,0 HP) |
|
Machine dimension (W x D x H) |
1910 x 840 x 1020 mm |
|
Weight approx. |
330 kg |
