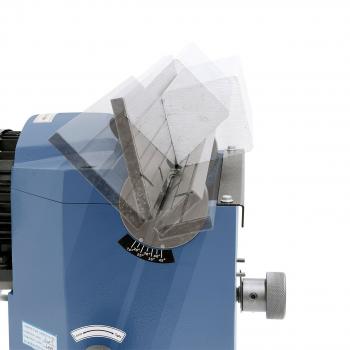

Bernardo KFM 500 M edge chamfering machine
The KFM 500 M chamfering machine is perfect for deburring and chamfering various materials as well as for economic preparation of welding seams. This model is mainly used in the metal industry.
Features Bernardo chamfering machine KFM 500 M
- Easy setting of milling depth and desired angle
- Highly suitable for deburring and chamfering (visible edges) of various material e.g. steel, aluminium, non-ferrous metals, plastics etc.
- Ideal machine for economic preparation of welding seams
- Stepless adjustment of chamfering angle from 15º to 45º
- Low cost model for light to mid-range demands
Standard accessories Bernardo chamfering machine KFM 500 M
- Guide rail 500 mm
- Milling head
- Carbide inserts
- Tool
Technical specifications Bernardo chamfering machine KFM 500 M
|
Max. bevel width at 45° |
5 mm |
|
Angle adjustment |
15° - 45° |
|
Guide rail |
500 mm |
|
Speed |
2800 rpm |
|
Motor power |
0,55 kW |
|
Voltage |
400 V |
|
Machine dimension (L x W x H) |
500 x 370 x 265 mm |
|
Weight approx. |
33 kg |
