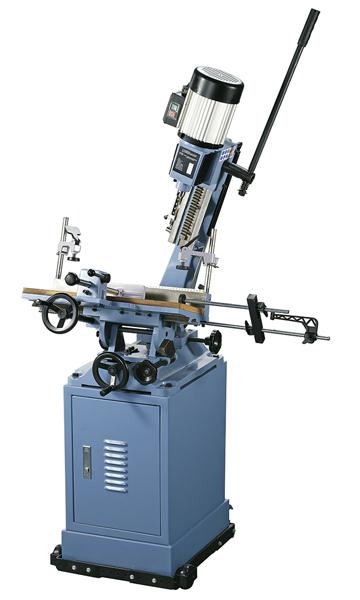

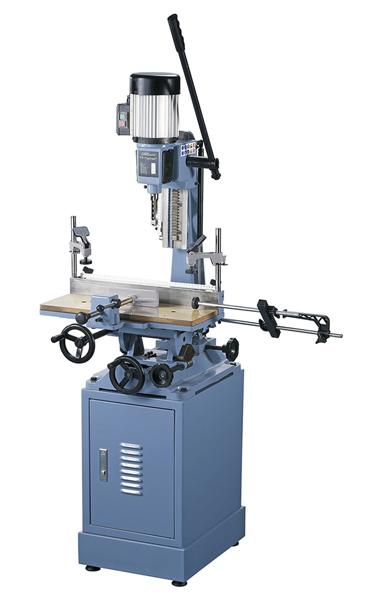

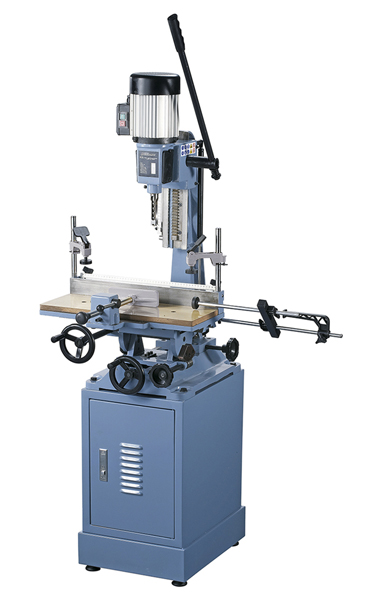

Bernardo hollow mortising machine HM 25 Top
Properties Bernardo hollow mortising machine HM 25 Top
- For mortising of rectangular shaped holes for tenon joints etc.
- Adjustable drill depth stop ensures repeat accuracy when mortising
- Eccentric clamp can be adjusted quickly to secure workpiece to table
- Includes gas pressure cylinder to support mortising
- Ideal for slotting and mortising of hard and soft timbers
Standard accessories Bernardo hollow mortising machine HM 25 Top:
- Drill chuck 16 mm
- 2 pcs. eccentric holder
- Longitudinal fence
- Drill depth stop with scale
- Quick clamping vice

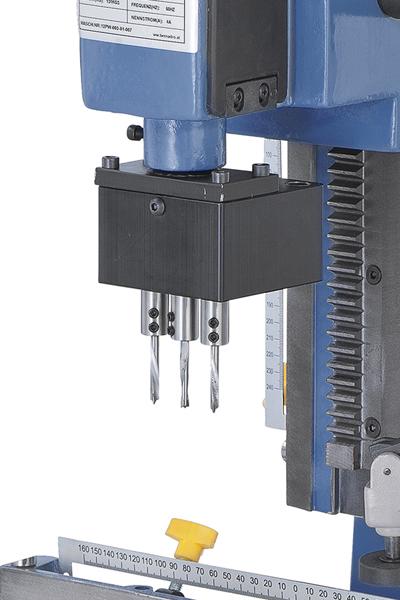

- Mortising chisel 15,87 mm
- Gas pressure balancing cylinder
- Tiltable coordinate table
Technical specifications Bernardo hollow mortising machine HM 25 Top:
|
Chisel size max. |
25,4 mm |
|
Drill stroke |
230 mm |
|
Max. mortising depth |
76 mm |
|
Max. workpiece height |
270 mm |
|
Max. workpiece width |
185 mm |
|
Table size |
540 x 190 mm |
|

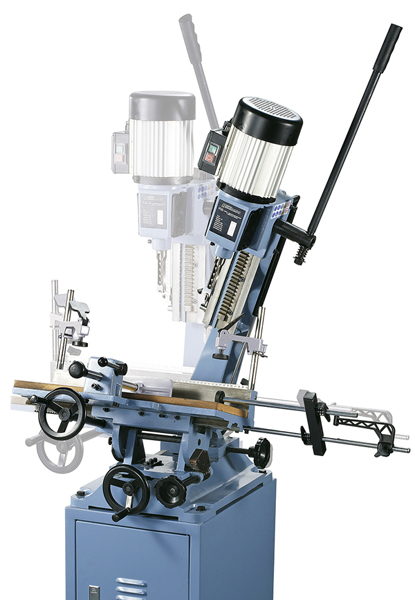

Tilting range work table forward / backward |
22,5° / 22,5° |
|
Tilting range spindle head |
22,5° / 22,5° |
|
Travel (x / y) |
280 / 135 mm |
|
Speed |
1400 rpm |
|
Motor power |
0,75 kW (1,0 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
570 x 650 x 1115 mm |
|
Weight approx. |
110 kg |
