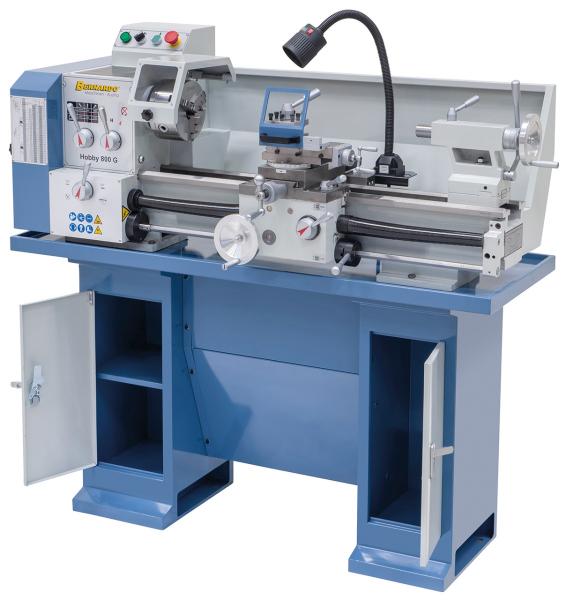

Product characteristics Bernardo Hobby 800G 400V center lathe
The Hobby 800 G lathe is equipped as standard with a lead and pull spindle for thread cutting or for automatic longitudinal and face feed. The 12-step gearbox enables quick adjustment of the speeds - no V-belt change necessary. Due to its compact design and high dead weight, this machine offers very smooth running and thus guarantees precise work.

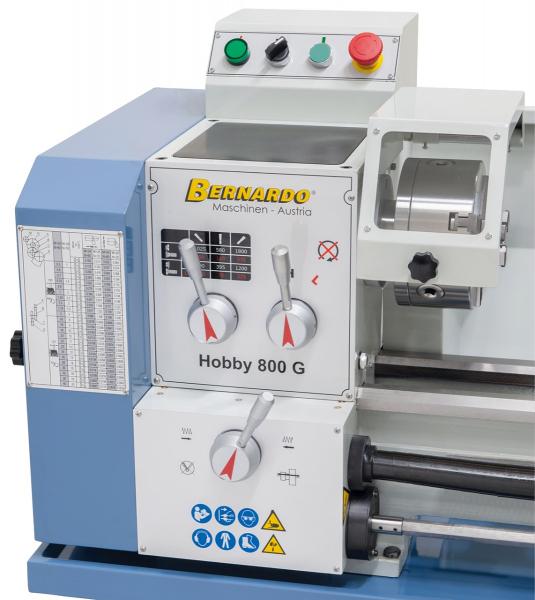

- Simple and fast speed change due to gearbox
- High concentricity of the spindle nose (≤ 0.009 mm) due to precision taper roller bearings
- Powerful drive motor for high torque, speed range 70 - 1800 rpm
- Versatile application possibilities: Precision mechanics, training and teaching workshops, ...
- The feed adjustment is simply designed, smooth-running and precisely switchable
- Solid machine bed with inductively hardened and ground bed guide
- Ideally suited for machining steel, non-ferrous materials and plastics
- With feed spindle as standard for automatic longitudinal and transverse feed
- Carriage including handwheels with fine scaling
Scope of delivery Bernardo Hobby 800G center lathe 400V

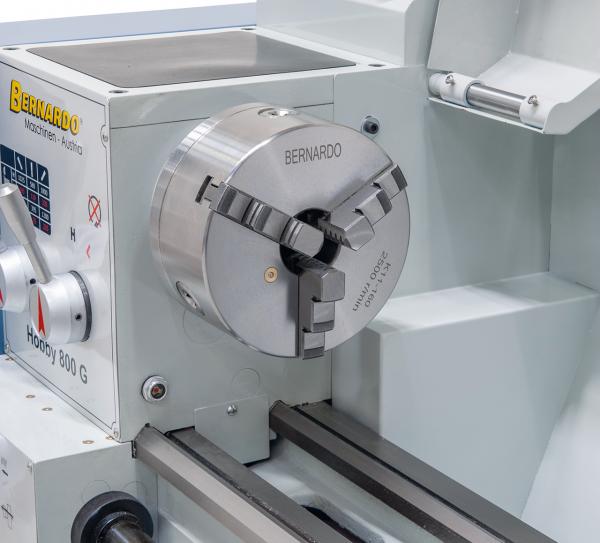

- 3-jaw chuck 160 mm
- Face slide with top support
- Fixed centre punch
- Change wheels
- Quadruple steel holder
- LED machine light
- Chuck guard
- Chaff guard
- Lead screw cover
- Chip tray
- Underframe
- Operating tool
Technical Data Bernardo Center Lathe Hobby 800G 400V
|
Peak width
|
750 mm
|
|
Centre height
|
165 mm
|
|
Swing diameter over bed
|
330 mm
|
|
Bed width
|
160 mm
|
|
Spindle bore
|
38 mm
|
|
Mounting in the spindle bore
|
MK 5
|
|
Speed range
|
(12) 70 - 1800 rpm
|
|
Longitudinal feed range
|
(45) 0.0087 - 1.395 mm/rev
|
|
Area Plan Advances
|
(48) 0.018 - 0.296 mm/rev
|
|
Metric threads
|
(17) 0,5 - 4 mm
|
|
Inch thread
|
(26) 8 - 40 Gg/1“
|
|
Pinole path
|
75 mm
|
|
Spindle sleeve holder
|
MK 3
|
|
Motor output power S1 100%
|
1,1 kW / 400 V
|
|
Motor input power S6 40%
|
1,5 kW / 400 V
|
|
Machine dimension (W x D x H)*
|
1370 x 680 x 1320 mm
|
|
Weight approx.
|
268 kg
|
* without underframe
