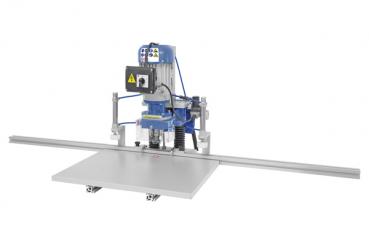

Bernardo Hardware drill BBM 35 P - Blum
Properties Bernardo Hardware drill BBM 35 P - Blum
- Comes complete with adjustable end stop depth of hole
- Powerful motor (0.75 kW) designed for continuous operation
- Excellent for drilling of hinges on furniture - Blum or Grass
- Features an extensive range of accessories
Standard accessories Bernardo Hardware drill BBM 35 P - Blum:
- Hinge drill diam. 35 mm left
- 2 pcs. drill diam. 2 mm right
- 3-spindle drilling unit
- Drilling unit with pneumatic feed
- 1,5 m fence with 2 stops
- 2 pcs. pneumatic downholder
- Air pistol
- Foot pedal
- Working table
Technical specifications Bernardo Hardware drill BBM 35 P - Blum:
|
Drill diameter |
35 mm |
|
Quantity of spindles |
3 pcs. |
|
Control |
pneumatic |
|
Workpiece clamping |
pneumatic |
|
Distance table/spindle max. |
85 mm |
|
Distance table/drill max. |
50 mm |
|
Table size |
500 x 350 mm |
|
Table moveable |
105 mm |
|
Fence length (incl. extension) |
1500 mm |
|
Needed air pressure |
6 - 8 bar |
|
Speed |
3000 rpm |
|
Motor power |
0,75 kW |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
500 x 520 x 500 mm* |
|
Weight approx. |
25 kg |
* without sidewise fence
