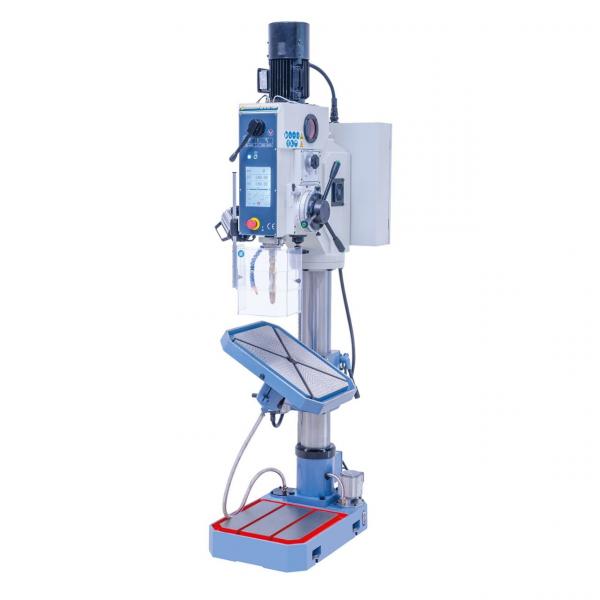

Product highlights Bernardo gear drilling machine GB 45 NC Vario
The GB 40 NC Vario geared drilling machine is equipped with a motorised table stroke as standard. The digital display for the drilling depth and speed, the electromechanical spindle feed and the infinitely variable speed control further enhance the machine.
- Infinitely variable speed control, set speed is shown on a digital display
- Motorised table stroke to reduce idle times
- 4 automatic spindle feeds switchable via electromagnetic clutch

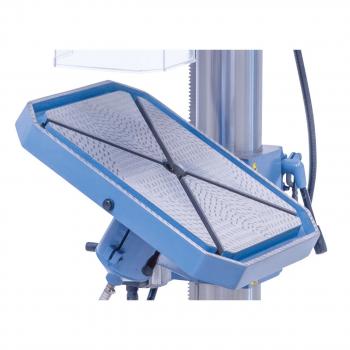

- Table can be rotated horizontally around the column and swivelled 45° to the right and left

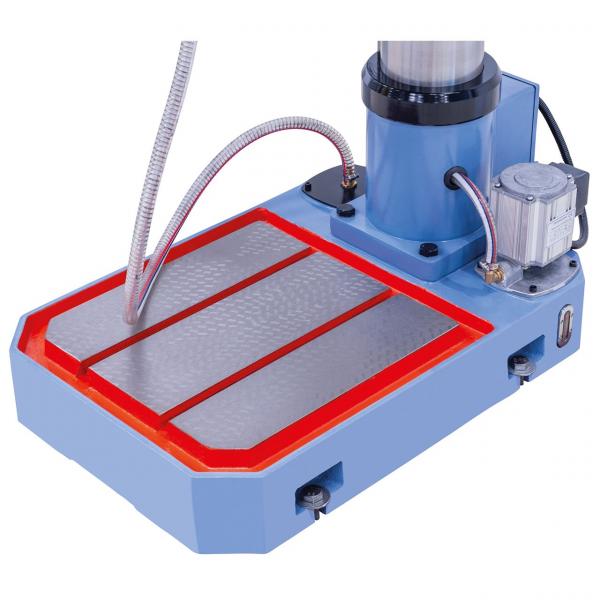

- Machined machine base (400 x 410 mm) with integrated coolant pump
- Guaranteed concentricity ≤ 0.02 mm measured in the sleeve
- Smooth running due to hardened and ground gears

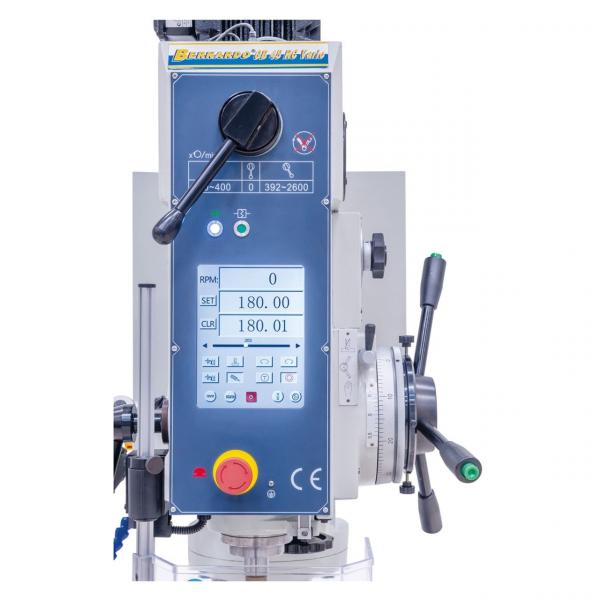

- Large touchscreen for all adjustment work
- Powerful drive motor designed for prolonged use
Scope of delivery Bernardo gear drilling machine GB 45 NC Vario
- Gear rim drill chuck 1 - 13 mm / B 16
- Drill chuck arbour MK 4 / B 16
- Reducing sleeve MK 4 / 3, MK 4 / 2, MK 3 / 1
- Motorised table stroke
- Coolant device
- Touch screen
- Thread cutting device
- Electromagnetic spindle feed
- Automatic mould ejector
- Initial filling with Shell Tellus 46
- LED machine light
- Digital speed display
- Digital drilling depth display
- Height-adjustable protective cover
Technical data Bernardo gear drilling machine GB 45 NC Vario
|
Drilling performance in steel
|
40 mm
|
|
Drilling performance in cast iron
|
45 mm
|
|
Thread cutting max.
|
M32
|
|
Drill chuck
|
1 - 13 mm / B 16
|
|
Morse taper
|
MK 4
|
|
Spindle speed / 2 levels
|
60 - 400 / 392 - 2600 rpm
|
|
Feed range
|
0.1 / 0.2 / 0.3 / 0.4 mm/rev
|
|
Projection
|
340 mm
|
|
Distance spindle / table max.
|
595 mm
|
|
Spindle / base plate distance
|
1205 mm
|
|
Quill stroke
|
210 mm
|
|
Column diameter
|
140 mm
|
|
Table size / T-slot size
|
540 x 435 mm / 14 mm
|
|
Worktop base plate
|
400 x 410 mm
|
|
Engine power
|
2,0 kW
|
|
Machine dimensions (W x D x H)
|
700 x 950 x 2270 mm
|
|
Weight approx.
|
500 kg
|
