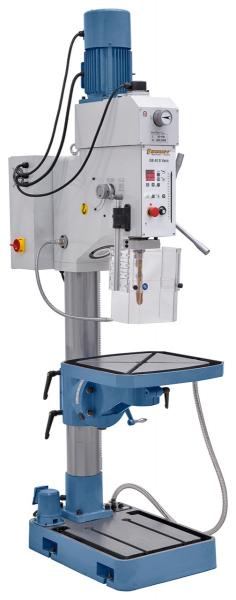

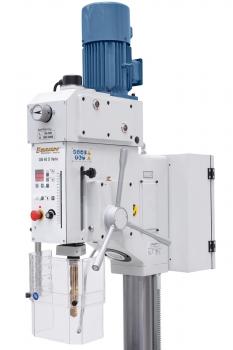

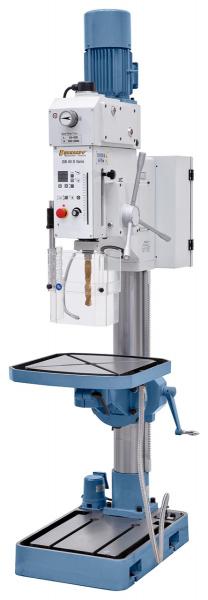

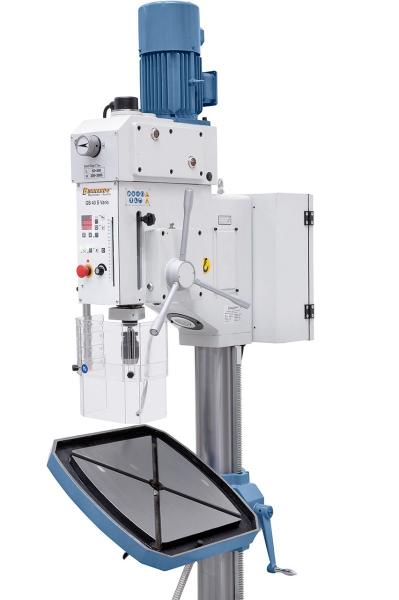

Product features Bernardo Gear Drilling Machine GB 40 S Vario
The model GB 40 S Vario is a heavy gear drilling machine with infinitely variable speed control, automatic spindle sleeve feed and digital speed display. This model is mainly used in repair shops and in mechanical engineering.
- Infinitely variable speed, ideal for setting the desired cutting speed

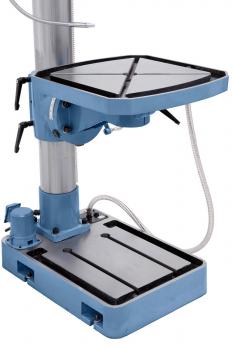

- Ground base plate with T-slots for clamping high workpieces
- 2 automatic drill feeds switchable via electromagnetic clutch
- Table rotates horizontally around the column, swivels 45° right and left
- Hardened and ground gear wheels ensure very smooth running
- Guaranteed concentricity ≤ 0.02 mm measured in the spindle sleeve
- User-friendly operation via membrane keyboard
- Automatic mould ejector and thread cutting device as standard
Scope of delivery Bernardo Gear Drilling Machine GB 40 S Vario
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck mandrel MK 4 / B 16
- Reducing sleeve MK 4 / 3, MK 3 / 2
- Frequency converter Delta VFD
- Automatic tool ejector
- Coolant device
- Electromagnetic spindle feed
- Thread cutting device
- LED machine light
- Digital speed display
- Digital drilling depth indicator
- Height-adjustable protective cover
Technical data Bernardo Gear Drilling Machine GB 40 S Vario
|
Drilling power max.
|
40 mm
|
|
Thread cutting max.
|
M24
|
|
Drill chuck
|
1 – 16 mm / B 16
|
|
Morse taper
|
MK 4
|
|
Spindle speed / 2 steps
|
55 - 550 / 200 - 2000 rpm
|
|
Feed range
|
0.1 / 0.2 mm/rev
|
|
Outreach
|
340 mm
|
|
Distance spindle / table max.
|
675 mm
|
|
Distance spindle / base plate
|
1195 mm
|
|
Quill stroke
|
190 mm
|
|
Column diameter
|
150 mm
|
|
Table size / T-slot size
|
555 x 555 mm / 18 mm
|
|
Worktop base plate
|
535 x 505 mm
|
|
Motor output power S1 100%
|
2,2 kW / 400 V
|
|
Motor input power S6 40%
|
3,0 kW / 400 V
|
|
Machine dimension (W x D x H)
|
620 x 1000 x 2300 mm
|
|
Weight approx.
|
475 kg
|
