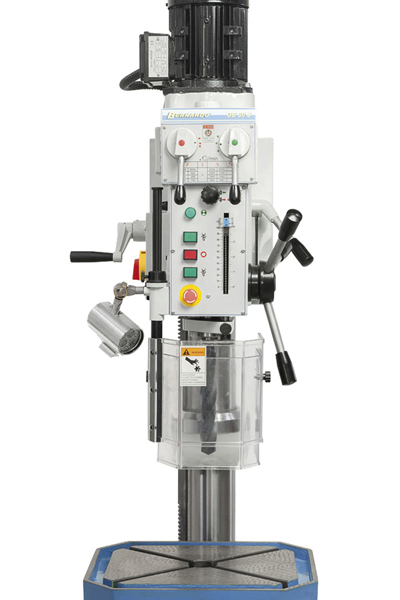

The GB 30 S powerful gearhead column drilling machine features a solid, torsion-free construction. It is mainly used in repair shops, mechanical workshops and training.
Product Highlights Bernardo Gear Drilling Machine - Column Drilling Machine GB 30 S
- Lever on gear head allows easy speed adjustment
- Adjustable drill depth stop includes scale
- Absolute concentricity ≤0,02 mm, measured at spindle
- Left and right rotation allows thread cutting
- Grey, cast-iron table includes T-slots and coolant grooves
- Automatic tool release device and LED working light come standard
- Polished base plate featues T-slots features T-slots for mounting of oversized workpieces
- High concentricity - spindle runs on high-quality bearings
- Hardened, polished gear wheels ensure smooth run
- Solid, polished steel column designed for constant use
Standard accessories Bernardo Gear Drilling Machine - Column Drilling Machine GB 30 S
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Morse taper drill sleeve MT 3 / 2, MT 3 / 1
- Automatic tool release device
- LED working light
- Height adjustable protective cover
Technical specifications Bernardo Gear Drilling Machine - Column Drilling Machine GB 30 S
|
Drilling capacity max. |
30 mm |
|
Thread cutting max. |
M 16 |
|
Drill chuck |
1 - 13 mm / B 16 |
|
Morse taper |
MT 3 |
|
Spindle speeds |
125 - 2825 rpm / 6 |
|
Distance spindle to column |
240 mm |
|
Distance spindle to table max. |
655 mm |
|
Distance spindle to base |
1130 mm |
|
Spindle stroke |
115 mm |
|
Column diameter |
100 mm |
|
Table size/ T-slot size |
405 x 335 mm / 14 mm |
|
Working surface of base |
320 x 315 mm |
|
Motor power output S1 100% |
0,75 kW / 400 V |
|
Motor power input S6 40% |
1,1 kW / 400 V |
|
Machine dimensions (W x D x H) |
500 x 700 x 1910 mm |
|
Weight approx. |
235 kg |
