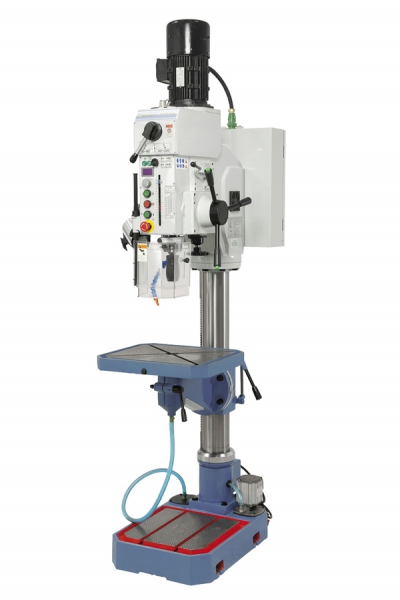

The GB 35 Vario is a heavy gear head drilling machine featuring stepless speed adjustment, automatic spindle feed and a digital display. This model is mainly used in repair shops and within engineering environments.
Features Bernardo GB 35 Vario geared table and pillar drilling machine
- Stepless speed settings allows optimal adjustment of cutting speed
- Automatic tool release device and thread cutting device come standard
- Electromechanic drill feed, adjustable from 0,1 - 0,3 mm/rev.

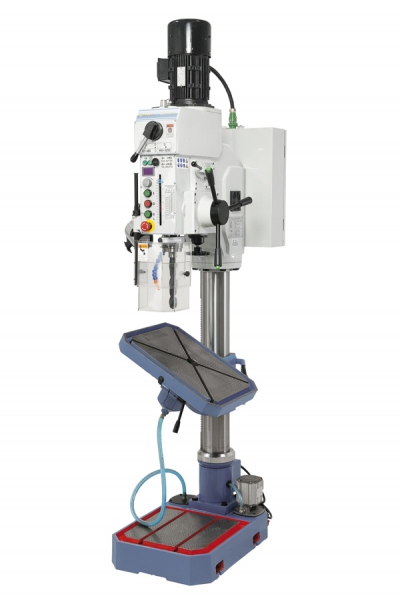

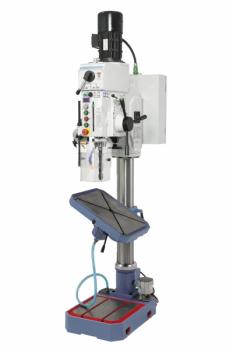

- Solid, grey cast iron table featues a tilt- and turnable support

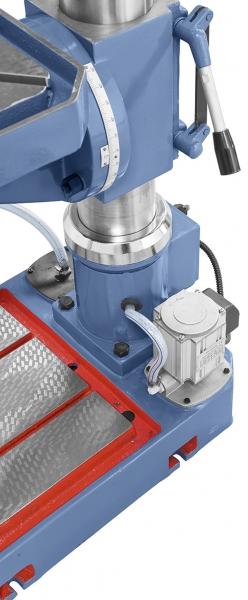

- T-slot in machine base allow clamping of oversize workpieces
- Guaranteed concentricity of ≤ 0,02 mm, measured at spindle
- Hardened, polished gear wheels allow for smooth operation
- Adjustable drill depth stop includes scale for easy readout
Standard accessories Bernardo GB 35 Vario geared table and pillar drilling machine
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve
- Coolant pump
- Thread cutting device
- Electromagnetic spindle feed
- Automatic tool release device
- LED machine light
- Initial filling with Shell Tellus 46

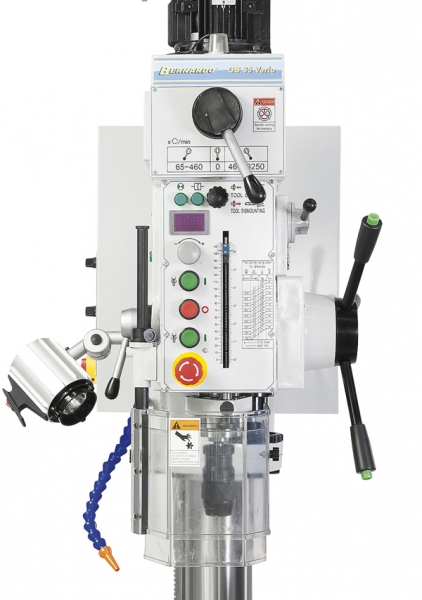

- Digital readout of speeds
- Height adjustable protective cover
Technical specifications Bernardo GB 35 Vario geared table and pillar drilling machine
|
Drilling capacity in steel |
35 mm |
|
Drilling capacity in cast iron |
40 mm |
|
Thread cutting max. |
M24 |
|
Drill chuck |
1 - 16 mm / B 16 |
|
Morse taper |
MT 4 |
|
Spindle speeds / 2 Steps |
65 - 460 / 460 - 3250 rpm |
|
Feed range |
0,1 / 0,2 / 0,3 mm/rev |
|
Distance spindle to column |
320 mm |
|
Distance spindle to table max. |
580 mm |
|
Distance spindle to base |
1145 mm |
|
Spindle stroke |
160 mm |
|
Column diameter |
120 mm |
|
Table size / T-Slot size |
500 x 420 mm / 14 mm |
|
Work surface base |
365 x 370 mm |
|
Motor power output S1 100% |
1,5 kW |
|
Motor power input S6 40% |
2,2 kW |
|
Machine dimensions (W x D x H) |
600 x 870 x 2170 mm |
|
Weight approx. |
375 kg |
