The GB 35 THS gear head drilling machine is serially equipped with a motorized table stroke to reduce down-time. The digital readout of drill depth and speed as well as the electro magnetic spindle feed round off the standard features.

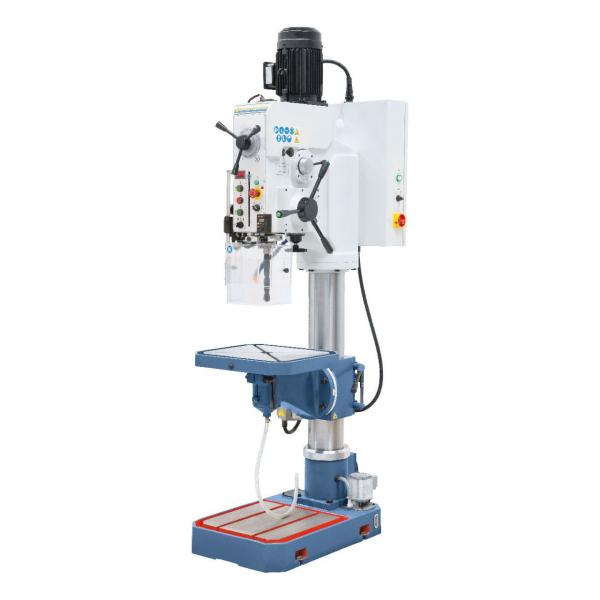

Features Bernardo GB 35 THS geared table and pillar drilling machine

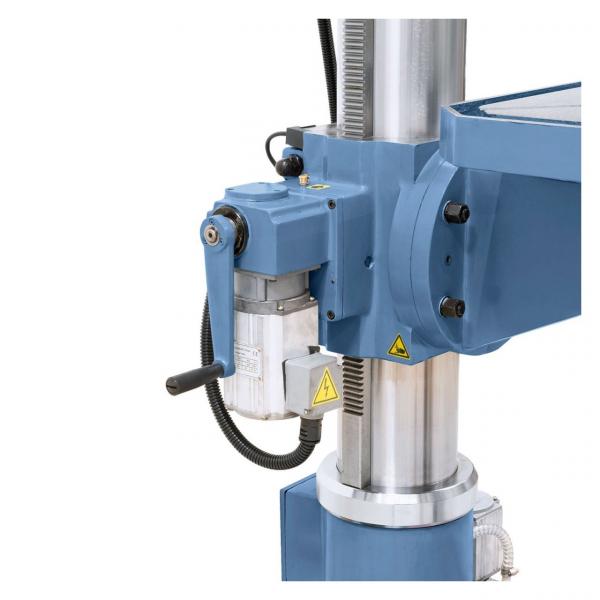

- Serially equipped with motorized table height adjustment
- Automatic tool release device and thread cutting device come standard

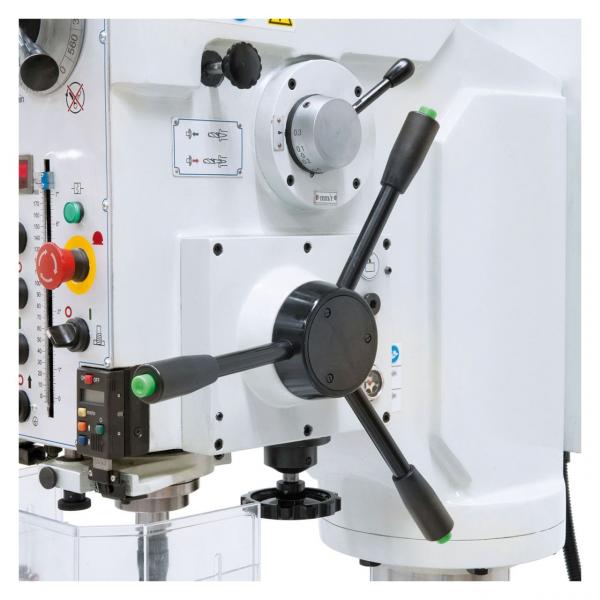

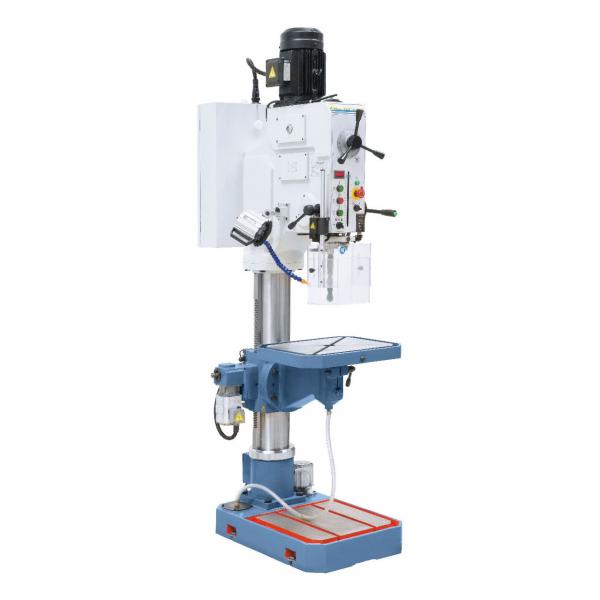

- Lever on gear head allows quick and easy speed change

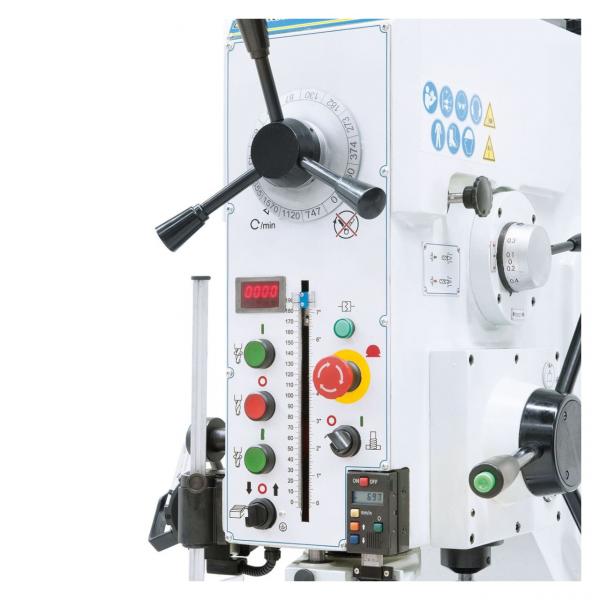

- Digital readout of speed and drill depth come standard
- Treated machine base (430 x 440 mm) with integrated coolant pump
- Electromagnetic spindle feed for precise work
- Quality bearings guarantees high concentricity

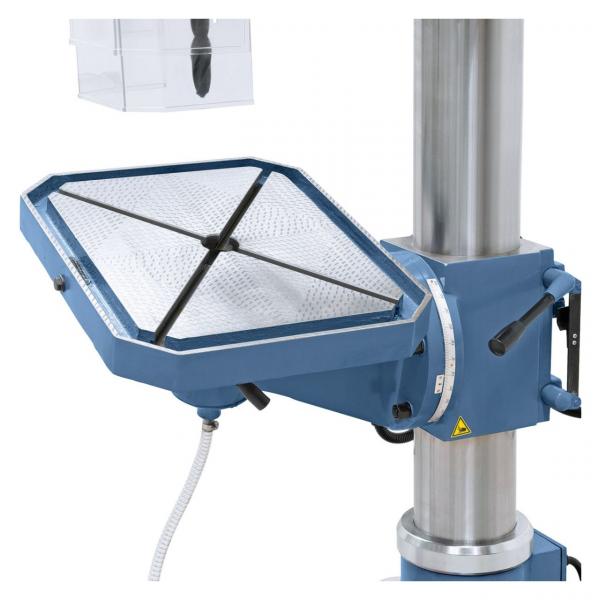

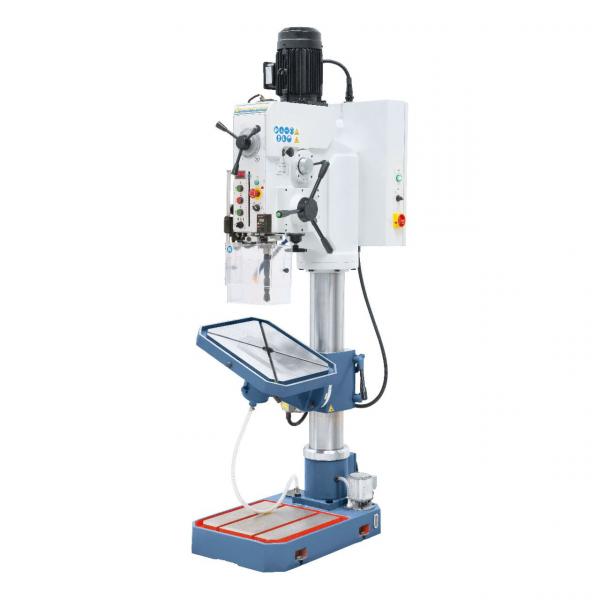

- Solid, hand-polished, grey cast iron table with tilt- and turnable support
Scope of delivery Bernardo GB 35 THS geared table and pillar drilling machine
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4 / 3, MT 4 / 2, MT 3 / 1
- Motoric table stroke
- Electromagnetic spindle feed
- Initial filling with Shell Tellus 46
- Automatic tool release device
- Thread cutting device
- Digital readout of speeds
- LED working light
- Coolant pump
- Digital readout of drill depth
- Height adjustable protective cover
Available special accessories Bernardo GB 35 THS geared table and pillar drilling machine
- Drill chuck arbor MK 4 - B 16 (24-1008)
- Chuck mandrel MK 4 - B 18 (24-1009)
- Chuck mandrel MK 4 - B 22 (24-1010)
- Chuck mandrel MK 4 - B 24 (24-1011)
Technical data Bernardo GB 35 THS geared table and pillar drilling machine
|
Drilling capacity in steel
|
35 mm
|
|
Drilling capacity in cast iron
|
40 mm
|
|
Thread cutting max.
|
M24
|
|
Drill chuck
|
1 - 13 mm / B 16
|
|
Morse taper
|
MT 4
|
|
Spindle speeds
|
(12) 43 - 2355 rpm
|
|
Feed range
|
0,1 / 0,2 / 0,3 / 0,4 mm/rev.
|
|
Distance spindle to column
|
340 mm
|
|
Distance spindle to table max.
|
580 mm
|
|
Distance spindle to base
|
1185 mm
|
|
Spindle stroke
|
200 mm
|
|
Column diameter
|
160 mm
|
|
Table size / T-slot size
|
540 x 440 mm / 14 mm
|
|
Working surface of base
|
430 x 440 mm
|
|
Motor power
|
1,3 / 1,8 kW
|
|
Machine dimension (W x D x H)
|
660 x 900 x 2240 mm
|
|
Weight approx.
|
553 kg
|
