Bernardo GB 30 T geared table and pillar drilling machine
Low cost and high performance make this gearhead table drill with a drilling capacity of 30 mm a popular model for workshops and locksmiths.
Properties Bernardo GB 30 T geared table and pillar drilling machine

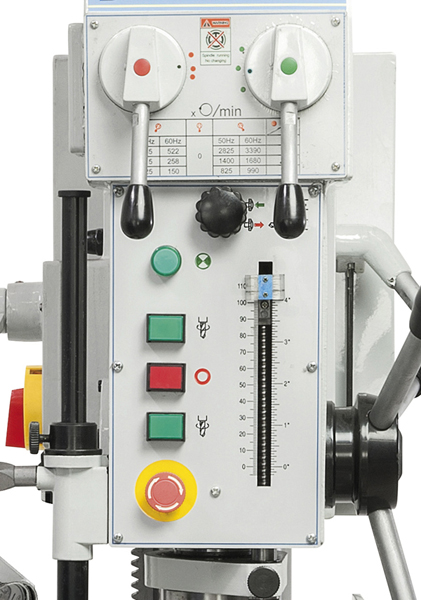

- Lever on gear head allows easy speed adjustment
- Adjustable drill depth stop includes scale
- Absolute concentricity ≤0,02 mm, measured at spindle
- Left and right rotation allows thread cutting
- Grey, cast-iron table includes T-slots and coolant grooves
- Automatic tool release device and LED working light come standard
- High concentricity - spindle runs on high-quality bearings
- Hardened, polished gear wheels ensure smooth run
- Solid, polished steel column is designed for constant use
Standard accessories Bernardo GB 30 T geared table and pillar drilling machine
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Morse taper drill sleeve MT 3 / 2, MT 3 / 1
- Automatic tool release device
- LED working light
- Height adjustable protective cover
Technical specifications Bernardo GB 30 T geared table and pillar drilling machine
| Drilling capacity max. | 30 mm |
| Thread cutting max. | M 16 |
| Drill chuck | 1 - 13 mm / B 16 |
| Morse taper | MT 3 |
| Spindle speeds | (6) 125 - 2825 rpm |
| Distance spindle to column | 240 mm |
| Distance spindle to base | 655 mm |
| Spindle stroke | 115 mm |
| Column diameter | 100 mm |
| T-slot size | 14 mm |
| Work surface base | 320 x 315 mm |
| Motor power output S1 100% | 0,75 kW / 400 V |
| Motor power input S6 40% | 1,1 kW / 400 V |
| Machine dimensions (W x D x H)* | 450 x 700 x 1440 mm |
| Weight approx. | 170 kg |
without stand
