Bernardo format circular saw milling machine FK 250 F - 230 V

Mobile Preview: Bernardo format circular saw milling machine FK 250 F - 230 V

Bernardo format circular saw milling machine FK 250 F - 230 V

Product No.:: 08-1173
Shipping time:: on request (abroad may vary)
Stock:: pieces
Weight:: 255 kg per piece

Price on request

Ask about product

Description

Description

Properties Bernardo format circular saw milling machine FK 250 F - 230 V

Extractable telescopic fence mountable at front or rear of square table
Solid square table for suffi cient support when processing oversize panels
Oversize, robust, grey cast-iron table eliminates vibrations
Spindle moulder unit features 3 different speeds (3500 / 5500 / 7000 rpm)
Smooth running, precise sliding table features hardened, prism-shaped guides
Ergonomically arranged handwheels for convenient adjustment of saw unit
Complete with telescopic arm and longitudinally adjustable square table

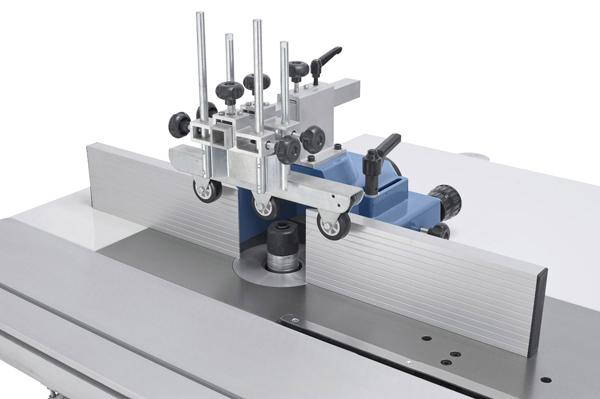

Moulding fence equipped with fine adjustment on both sides
Scoring unit and sawblade are part of standard equipment

Standard accessories Bernardo format circular saw milling machine FK 250 F - 230 V:

Sawblade 250 x 3,2 x 30 mm / 24T
Scoring sawblade 80 x 3,2 x 20 mm / 8T
Protective cover with dust extraction outlet and tube
Mitre fence and downholder
Eccentric holder
End stop
Table extension and enlargement
Extractable telescopic fence
Square table
Moulding fence
Push stick
Tools

Technical specifications Bernardo format circular saw milling machine FK 250 F - 230 V:

Circular saw
Table size	1045 x 300 mm
Table height	850 mm
Table extension	300 x 245 mm
Table enlargement	1045 x 500 mm
Square table	410 x 600 mm
Sliding table	1200 x 240 mm
Cutting length	1350 mm
Max. sawblade diameter	254 x 30 mm
Max. cutting height 90° / 45°	65 / 55 mm
Cutting width on rip fence	700 mm
Speed main sawblade	4050 rpm
Speed scoring sawblade	6300 rpm
Scoring sawblade	80 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Spindle moulder
Spindle diameter	30 mm
Height adjustment	150 mm
Table opening	150 mm
Working length of spindle	90 mm
Max. tool diameter
- at profiling	140 mm
- at tenoning	200 mm
Spindle speed	3500 / 5500 / 7000 rpm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	230 V
Machine dimension (W x D x H)	1500 x 1560 x 1250 mm
Weight approx	255 kg
