Bernardo Feeding apparatus MX 38
Properties Bernardo Feeding apparatus MX 38
- Powerful motor designed for continuous operation

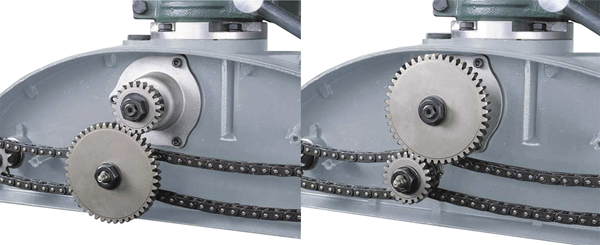

- Metal gear box with hardened gear wheels for consistent feeding speed
- Handwheel ensures user-friendly height adjustment
- Utilize in horizontal or vertical position
- Allows for individual settings for various work requirements
- Complete with forward and reverse
- Big suspension travel of each driven feed roller
- Robust, universal, grey cast-iron stand with polished guide rods
Technical specifications Bernardo Feeding apparatus MX 38:
|
Feeding speeds |
3,5 / 5 / 7 / 10 / 12,5 / 16 / 25 / 32 m/min |
|
Rollers |
3 pcs. |
|
Roller diameter |
120 mm |
|
Roller width |
60 mm |
|
Roller suspension |
20 mm |
|
Motor power |
0,75 kW (1,0 HP) |
|
Voltage |
400 V |
|
Weight approx. |
57 kg |
