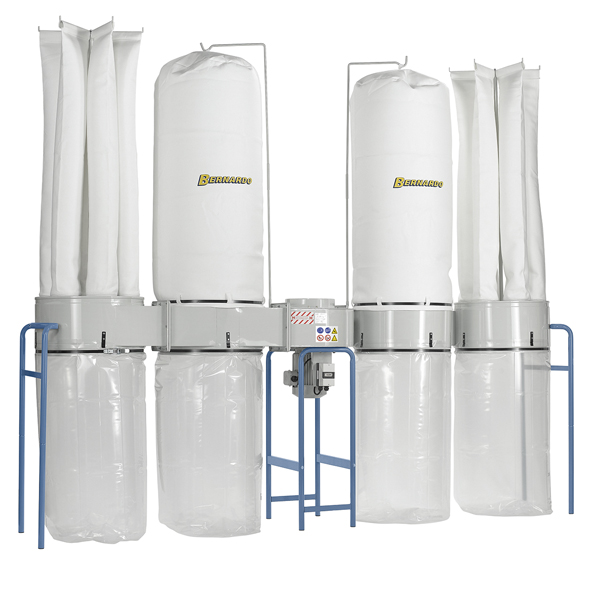

Bernardo Extraction unit FT 504 SF
Properties Bernardo Extraction unit FT 504 SF
- Fine filter bags (dust grade M) reduce dust content in air
- Modern design and optimal price-to-performance ratio
- Paddle-shaped profi le of the metal fan-wheel ensures top performance
- Steel fan wheel resistant to extracting small pieces of wood
- Fine filter bags ensure clean work conditions, significant reduction of dust content in the air
- Suitable for wood, plastics, metals, polystyrene etc.
- High-grade powder coating makes surface scratch-resistant
Standard accessories Bernardo Extraction unit FT 504 SF:
- Hose filter

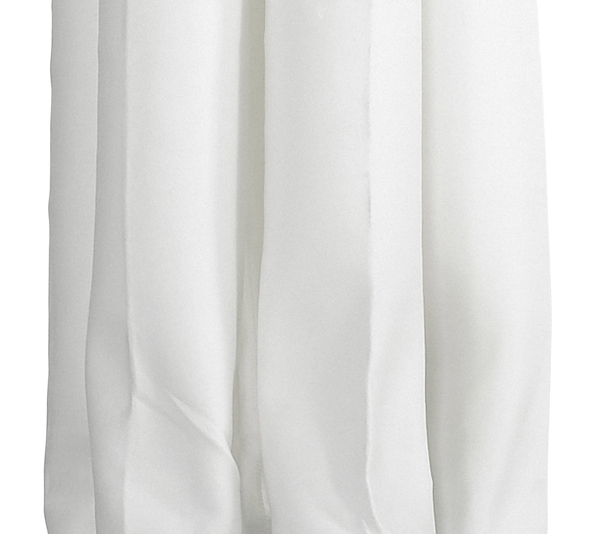

- Filter bag
- Waste bag
Technical specifications Bernardo Extraction unit FT 504 SF:
|
Capacity |
8900 m3/h |
|
Filter area |
19,0 m2 |
|
Low pressure max. |
1900 Pa |
|
Inlet diameter |
300 mm |
|
Waste sack volume |
1130 l |
|
Idle speed |
2850 rpm |
|
Sound pressure |
82 dB |
|
Motor power output S1 100% |
3,75 kW (5,0 HP) |
|
Motor power input S6 40% |
5,25 kW (7,1 HP) |
|
Voltage |
400 V / 50 Hz |
|
Machine dimension (W x D x H) |
2800 x 700 x 2700 mm |
|
Weight approx. |
105 kg |
