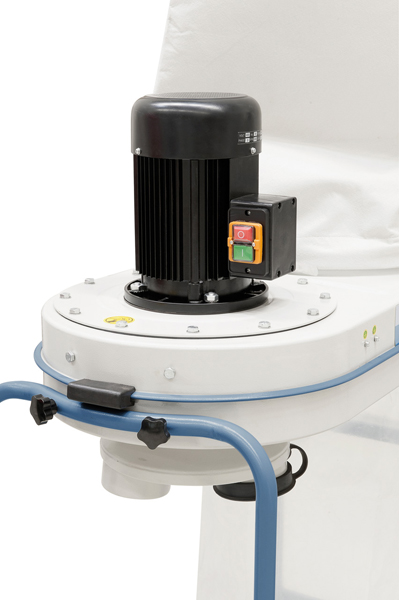

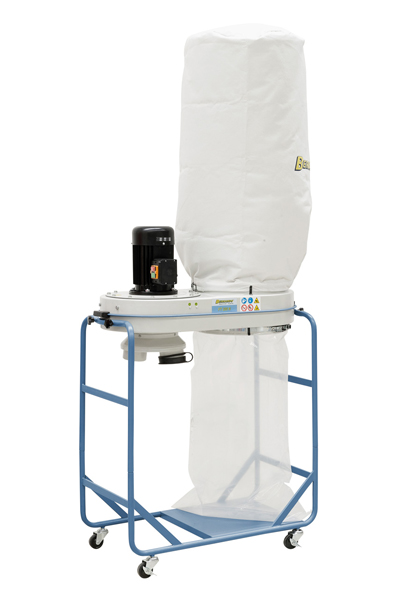

Bernardo Extraction unit FT 200 N
Properties Bernardo Extraction unit FT 200 N
- The high-power motor warrants constant dust extraction
- even with permanent work
- High comfort through quick changing system of the waste sacks
- High-quality powder coating creates scratch-resistant surface
- Steel fan wheel resistant to suction of small pieces of wood
- Modern design and attractive price-to-benefit ratio
Standard accessories Bernardo Extraction unit FT 200 N:
- Filter bag
- Waste bag
- Carriage
Technical specifications Bernardo Extraction unit FT 200 N:
|
Capacity |
2000 m³/h |
|
Filter area |
1,83 m² |
|
Low pressure max. |
1800 Pa |
|
Inlet diameter |
2 x 100 mm |
|
Waste sack volume |
110 l |
|
Idle speed |
2950 rpm |
|
Sound pressure |
87 dB |
|
Motor power output S1 100% |
1,5 kW (2,0 HP) |
|
Motor power input S6 40% |
2,1 kW (2,8 HP) |
|
Voltage |
400 V / 50 Hz |
|
Machine dimension (W x D x H) |
1000 x 500 x 2100 mm |
|
Weight approx. |
39 kg |
