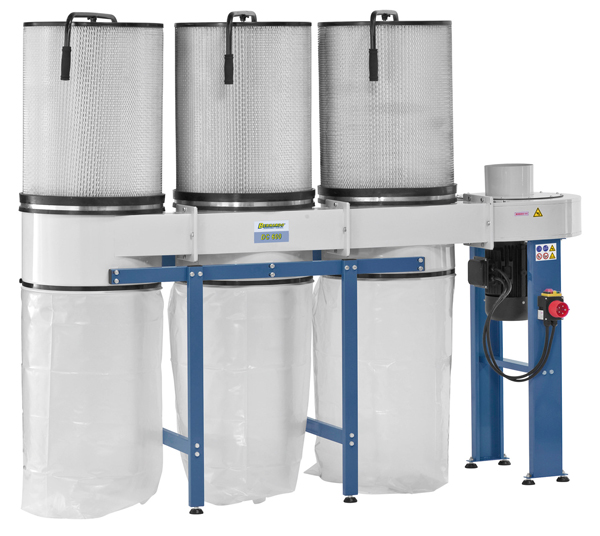

Bernardo Extraction system with fine dust filter cartridge DC 650 CF
Properties Bernardo Extraction system with fine dust filter cartridge DC 650 CF
- Ideal device for extraction of saw dust, milling chips and wood shavings

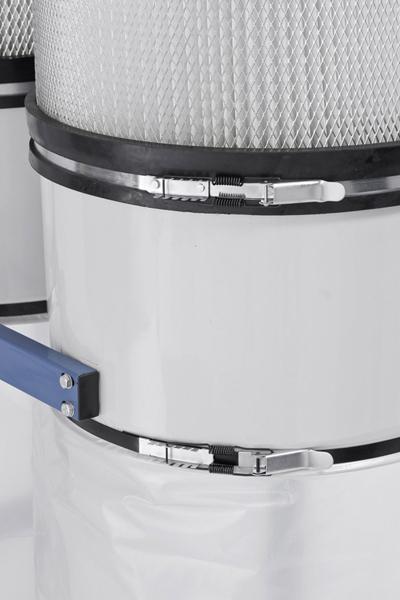

- Strap with quick clamping allows for straightforward change of dust bags
- Aerodynamically shaped, steel fan wheel ensures top performance level
- Complete with filter cartridges and cleaning brushes for fine dust removal
- Cartridge filter increases extraction force because of larger fi lter area
- Powerful drive motor guarantees constant level of extraction
Standard accessories Bernardo Extraction system with fine dust filter cartridge DC 650 CF:
- 3 cartridge filter FP 2
- Waste bags

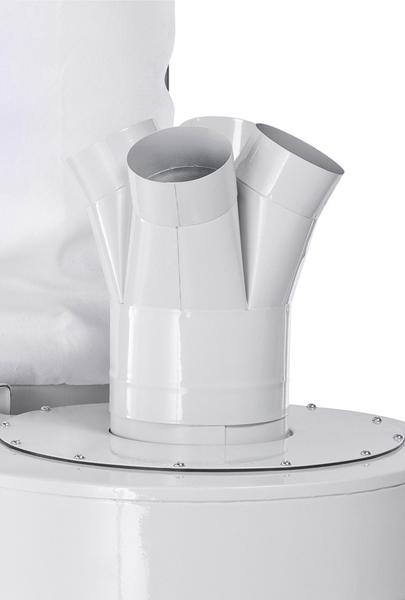

- Adapter 1 x 180 mm / 4 x 100 mm
Technical specifications Bernardo Extraction system with fine dust filter cartridge DC 650 CF:
|
Capacity |
5310 m³/h |
|
Filter area |
12,0 m² |
|
Low pressure max. |
2340 Pa |
|
Inlet diameter |
1 x 180 mm |
|
Inlet diameter with adapter |
4 x 100 mm |
|
Waste bag volume |
570 l (3 x 190 l) |
|
Idle speed |
2950 rpm |
|
Sound pressure |
80 dB |
|
Motor power output S1 100% |
3,7 kW (5,0 HP) |
|
Motor power input S6 40% |
5,1 kW (7,0 HP) |
|
Voltage |
400 V / 50 Hz |
|
Machine dimension (W x D x H) |
2184 x 582 x 1755 mm |
|
Weight approx. |
112 kg |
