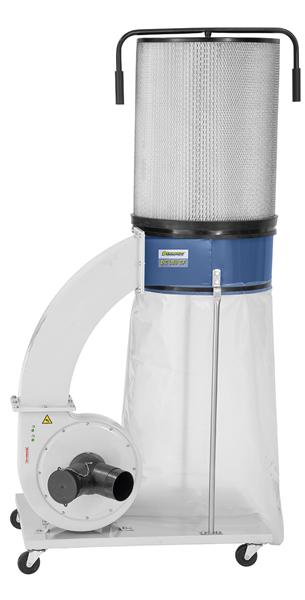

Bernardo Extraction system with fine dust filter cartridge DC 350 CF
Properties Bernardo Extraction system with fine dust filter cartridge DC 350 CF
- Comes complete with cartidge filter
- Larger filter area increases air passage
- Steel fan wheel resistant to suction of small pieces of wood
- Constant extraction force even during long operations
- Solid steel plate construction reduces static charge - compared to plastic housing
- Connect to fixed or mobile wood working machines
Standard accessories Bernardo Extraction system with fine dust filter cartridge DC 350 CF:
- Cartidge filter FP 2
- Waste bag
- Y-adapter 1 x 130 mm / 2 x 100 mm
- Carriage
Technical specifications Bernardo Extraction system with fine dust filter cartridge DC 350 CF:
| Capacity | 2800 m³/h |
| Filter area | 4,0 m² |
| Low pressure max. | 1800 Pa |
| Inlet diameter | 1 x 130 / 2 x 100 mm |
| Waste bag volume | 200 l |
| Idle speed | 2950 rpm |
| Sound pressure | 87,1 dB |
| Motor power output S1 100% | 1,5 kW (2,0 HP) |
| Motor power input S6 40% | 2,1 kW (2,8 HP) |
| Voltage | 400 V / 50 Hz |
| Machine dimension (W x D x H) | 850 x 740 x 1800 mm |
| Weight approx. | 45 kg |
