Bernardo Extraction system with fine dust filter cartridge DC 250 CF

Product No.:
12-2085
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
31 kg per piece
575,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Properties Bernardo Extraction system with fine dust filter cartridge DC 250 CF

  • Complete with cartridge filter
  • Large filter area allows for big air passage
  • Steel fan wheel resistent to suction of small pieces of wood
  • Constant extraction force even during long operations
  • Solid steel plate construction which keep static charge to a minimum - compared to plastic housings
  • Uncomplicated, quick bag change
  • Includes carriage with castors for high mobility

Standard accessories Bernardo Extraction system with fine dust filter cartridge DC 250 CF:

  • Cartridge filter FP 1
  • Floor suction device
  • Waste bag
  • Carriage


Technical specifications Bernardo Extraction system with fine dust filter cartridge DC 250 CF:

Capacity

1500 m³/h

Filter area

2,25 m²

Low pressure max.

1020 Pa

Inlet diameter

100 mm

Waste bag volume

70 l

Idle speed

2950 rpm

Sound pressure

86,5 dB

Motor power output S1 100%

0,75 kW (1,0 HP)

Motor power input S6 40%

1,0 kW (1,35 HP)

Voltage

230 V / 50 Hz

Machine dimension (W x D x H)

850 x 380 x 1420 mm

Weight approx.

31 kg

Customer reviews

Unfortunately there are no review yet. Be the first who rate this product.

This product is compatible with (for example):

Bernardo Grounding set ES 1
Bernardo Grounding set ES 1
48,90 EUR
Bernardo Cartridge filter FP 1
Bernardo Cartridge filter FP 1
220,90 EUR
Bernardo Waste bag for DC 230 / DC 230 E / DC 250 CF (10 pcs.)
Bernardo Waste bag for DC 230 / DC 230 E / DC 250 CF...
37,90 EUR
Bernardo PU spira suction hose diam 100 mm 6 m
Bernardo PU spira suction hose diam. 100 mm (6 m)
151,90 EUR
Bernardo Tension belt for DC 230 / DC 230 E / DC 250 CF
Bernardo Tension belt for DC 230 / DC 230 E / DC 250...
29,90 EUR

This product is similar to:

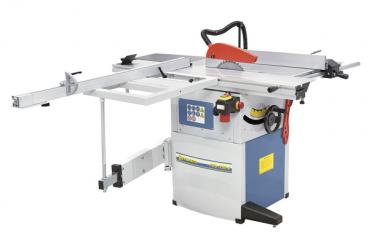

Bernardo sliding table saw FKS 1600 N - 400 V
