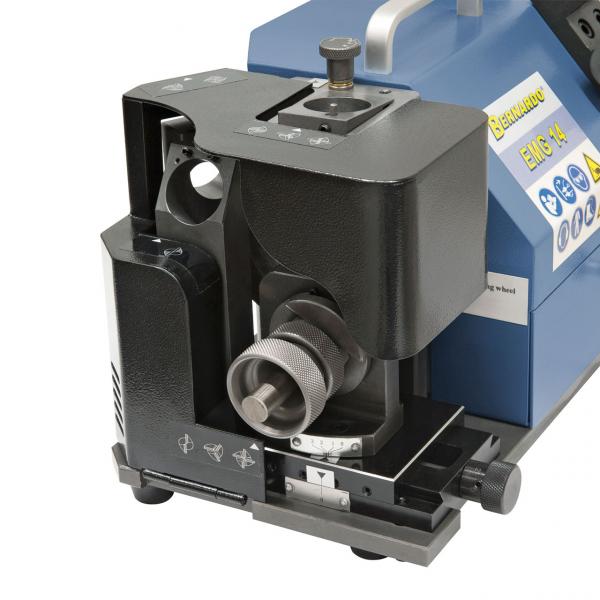

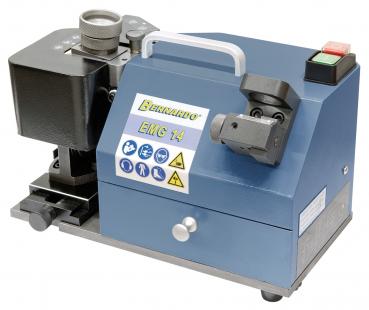

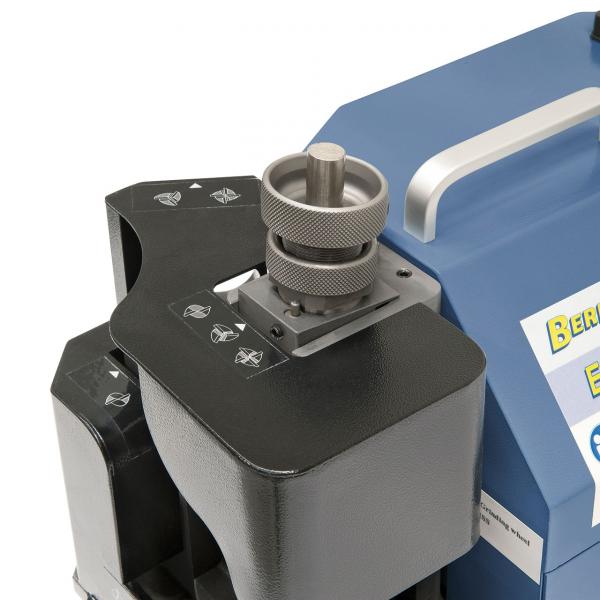

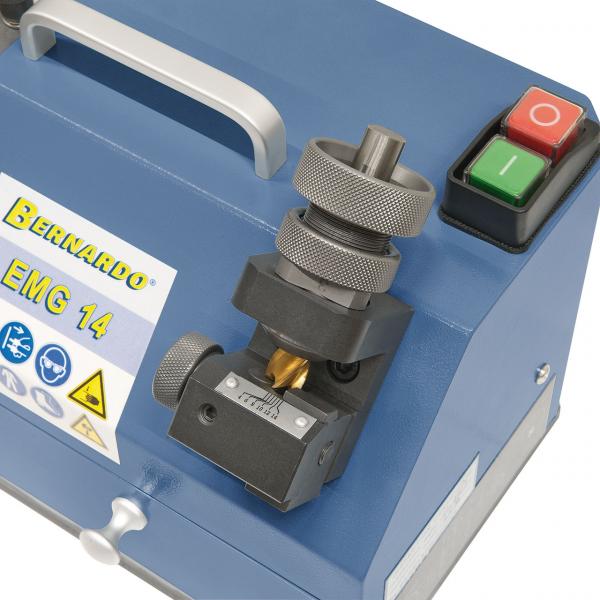

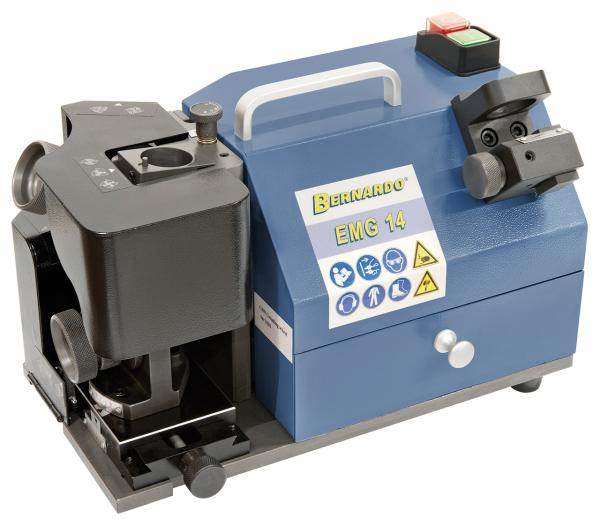

Product features Bernardo end mill grinding machine EMG 14
The EMG 14 end mill grinding machine is ideal for grinding HSS and carbide end mills. The adjustable point angle from 0° to 5° makes these models universally applicable for 2-, 3- and 4-flute end mills.
- Cutters with 2, 3 and 4 cutting edges, from diam. 12 mm grindable with 6 cutting edges
- For face grinding of HSS and carbide cutters
- Vibration-free operation due to high dead weight and rubber feet
- Quick and precise work results due to simple operation
- Rotor with precision ball bearing ensures smooth running
- 2 models available, optionally from 4 - 14 mm or 12 - 30 mm
Scope of delivery Bernardo end mill grinding machine EMG 14
- Grinding wheel CBN
- Collets ER 20, 3 - 14 mm, 6 pcs (4 / 6 / 8 / 10 / 12 / 14 mm)
- Collet holder
Technical data Bernardo end mill grinding machine EMG 14
- Cutter diameter: 4 - 14 mm
- Point angle: 0° - 5
- Speed: 4800 rpm
- Motor power: 0,16 kW
- Voltage: 230 V
- cutter length: 300 mm
- Width: 190 mm
- Height: 200 mm
- Weight approx.: 13 kg
