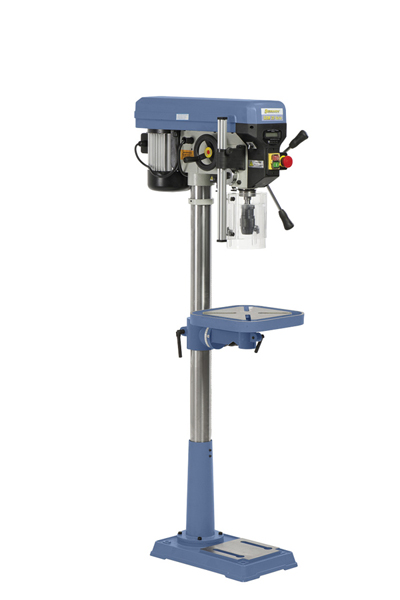

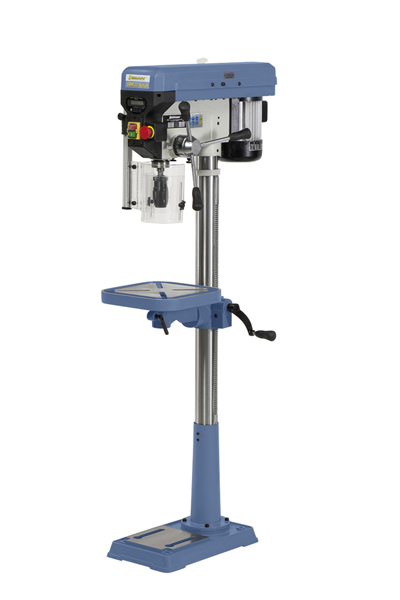

The SBM 20 Vario is a powerful column drilling machine in modern design, come fully equipped with cross laser device and digital display for speed and drill depth as well as a left and right turning device. Most commonly these models are used among amateurs and for training purposes.
Properties Bernardo drilling machine SBM 20 Vario - 400 V
- Digital display allows for easy readout of speed or spindle stroke
- Grey cast iron pulleys ensure smooth operation
- Quality ball bearings guarantee high concentricity
- Oversize drill table features diagonal T-slots
- Rotation switch for right and left turn
- Drill table tilts (±45°) height adjustment by gear rack
- Powerful, high performance aluminium motor according to IP 54 standards
- Precise keyless drill chuck as part of standard equipment
- Comes complete with T-slots in polished base plate
- Ergonomic handles ensure high work comfort
Standard accessories Bernardo drilling machine SBM 20 Vario - 400 V
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 2 / B 18
- Digital readout of speed
- Digital spindle stroke indication
- Cross laser device
- Left and right turning
- T-slot nuts
- Height adjustable protective cover
- Separate emergency stop button
- Tools
Technical specifications Bernardo drilling machine SBM 20 Vario - 400 V
|
Drilling capacity in steel |
20 mm |
|
Drill chuck |
1 - 16 mm / B 18 |
|
Morse taper |
MT 2 |
|
Spindle speed, stepless |
400 - 1950 rpm |
|
Distance spindle to column |
180 mm |
|
Table tiltable |
-45° to +45° |
|
Distance spindle to table max. |
690 mm |
|
Distance spindle to base |
1170 mm |
|
Spindle stroke |
80 mm |
|
Column diameter |
72 mm |
|
Table size / T-slot size |
305 x 305 mm / 16 mm |
|
Working surface of base |
205 x 205 mm |
|
Motor power output S1 100% |
0,90 kW / 400 V |
|
Motor power input S6 40% |
1,3 kW / 400 V |
|
Machine dimension (W x D x H) |
420 x 600 x 1560 mm |
|
Weight approx. |
68 kg |
