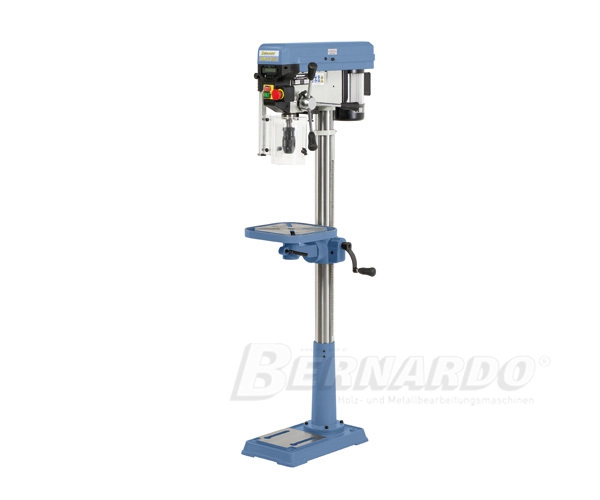

The SBM 16 Vario is a powerful column drilling machine in modern design, come fully equipped with cross laser device and digital display for speed and drill depth. Most commonly this model is used among amateurs and for training purposes.
Properties Bernardo drilling machine SBM 16 Vario - 400 V
- Digital display allows for easy readout of speed or spindle stroke
- Grey cast iron pulleys ensure smooth operation
- Quality ball bearings guarantee high concentricity
- Oversize drill table features diagonal T-slots
- Drill table tilts (±45°) height adjustment by gear rack
- Powerful, high performance aluminium motor according to IP 54 standards
- Precise keyless drill chuck as part of standard equipment
- Comes complete with T-slots in polished base plate
- Ergonomic handles ensure high work comfort
Standard accessories Bernardo drilling machine SBM 16 Vario - 400 V
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 2 / B 18
- Digital readout of speed
- Digital spindle stroke indication
- Cross laser device
- T-slot nuts
- Height adjustable protective cover
- Separate emergency stop button
- Tools
Technical specifications Bernardo drilling machine SBM 16 Vario - 400 V
|
Drilling capacity in steel
|
16 mm
|
|
Drill chuck
|
1 - 16 mm / B 18
|
|
Morse taper
|
MT 2
|
|
Spindle speed, stepless
|
400 - 1950 rpm
|
|
Distance spindle to column
|
160 mm
|
|
Table tiltable
|
-45° to +45°
|
|
Distance spindle to table max.
|
690 mm
|
|
Distance spindle to base
|
1170 mm
|
|
Spindle stroke
|
80 mm
|
|
Column diameter
|
72 mm
|
|
Table size / T-slot size
|
285 x 285 mm / 16 mm
|
|
Working surface of base
|
200 x 190 mm
|
|
Motor power output S1 100%
|
0,60 kW / 400 V
|
|
Motor power input S6 40%
|
0,85 kW / 400 V
|
|
Machine dimension (W x D x H)
|
420 x 600 x 1560 mm
|
|
Weight approx.
|
57 kg
|
