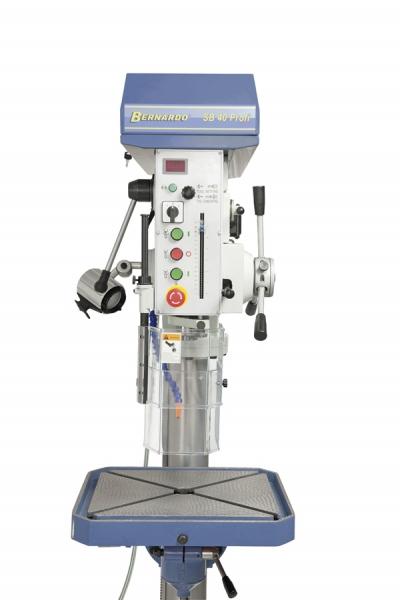

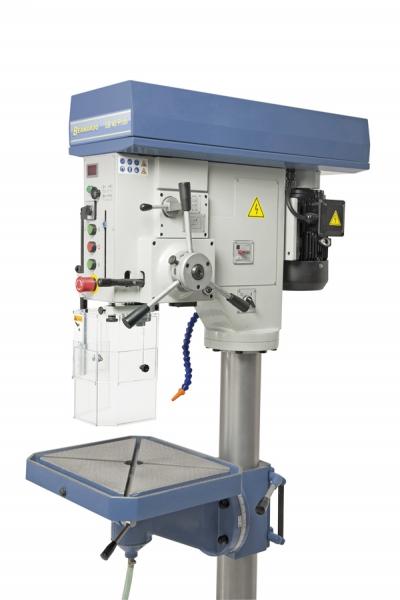

Heavy drilling machine with stepless speed adjustment, automatic spindle feed and digital speed indicator. This model is popular in repair workshops and industrial production.
Properties Bernardo drilling machine SB 40 Profi
- Vario-drive for precise speed adjustment
- Manual or automatic spindle feed
- Automatic tool release device allows easy tool change
- Speed settings are read quickly on digital readout
- Solid, tiltable grey cast iron table with T-slots and cooling grooves
- Coolant pump and work lamp included as standard accessories
- Adjustable drill depth stop, drill depth can be read on scale
- Right and left turning for thread cutting
Standard accessories Bernardo drilling machine SB 40 Profi
- Drill chuck arbor MT 4 / B 16
- Coolant pump
- Digital readout of speeds
- Keyless drill chuck 1 - 16 mm / B 16
- Morse taper drill sleeve MT 4 / 3, MT 4 / 2, MT 3 / 1
- LED working light
- Automatic tool release device
- Height adjustable protective cover
Technical specifications Bernardo drilling machine SB 40 Profi
|
Drilling capacity max. |
40 mm |
|
Drill chuck |
1 - 16 mm / B 16 |
|
Morse taper |
MT 4 |
|
Spindle speed, stepless |
90 - 1455 rpm |
|
Distance spindle to column |
320 mm |
|
Table tiltable |
-50° to +50° |
|
Distance spindle to table max. |
590 mm |
|
Distance spindle to base |
1155 mm |
|
Spindle stroke |
160 mm |
|
Spindle feed |
0,1 / 0,2 / 0,3 mm/rev. |
|
Column diameter |
120 mm |
|
Tabe size / T-slot size |
505 x 425 mm / 14 mm |
|
Working surface of base |
360 x 370 mm |
|
Motor power |
1,0 / 1,5 kW |
|
Machine dimension (W x D x H) |
500 x 930 x 1870 mm |
|
Weight approx. |
380 kg |
