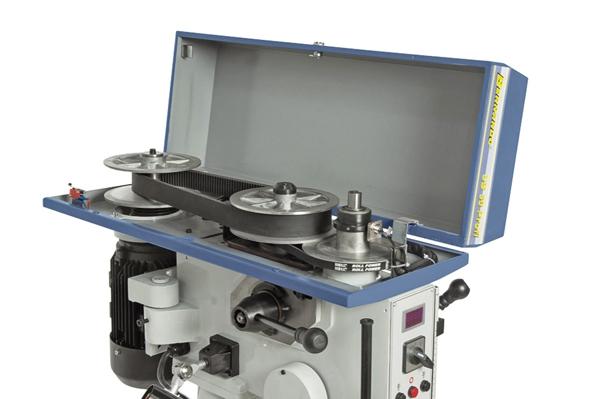

The SB 30 Profi vario drilling machine is serially equipped with a powerful 2-step motor. The solid variator-drive guarantees ideal power transmission to spindle.
Properties Bernardo drilling machine SB 30 Profi
- Solid, grey cast iron construction with modern design

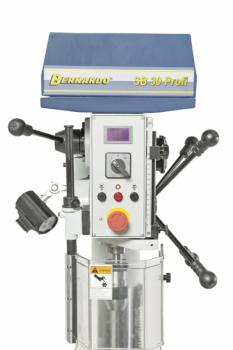

- Stepless speed adjustment - speed setting can be read on digital readout
- Height adjustment to table via gear rack and crank handle
- Right and left spindle rotation for thread cutting
- Powerful 2-step motor, ranging from 105 – 1725 rpm

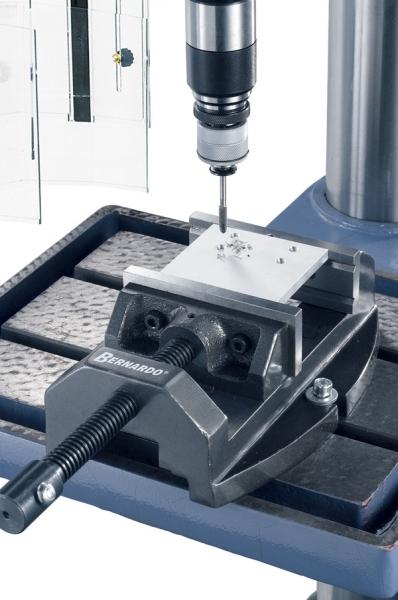

- Base with T-slots for mounting of large workpieces
- Safety switch with undervoltage release
- Spindle runs on high-quality ball bearings
Standard accessories Bernardo drilling machine SB 30 Profi
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Morse taper drill sleeve MT 3 / 2
- Digital readout of speeds
- LED working light
- Height adjustable protective cover
Technical specifications Bernardo drilling machine SB 30 Profi
|
Drilling capacity max. |
32 mm |
|
Drill chuck |
1 - 13 mm / B 16 |
|
Morse taper |
MT 3 |
|
Spindle speed, stepless |
105 - 1725 rpm |
|
Distance spindle to column |
230 mm |
|
Distance spindle to table max. |
690 mm |
|
Distance spindle to base |
1180 mm |
|
Spindle stroke |
120 mm |
|
Column diameter |
100 mm |
|
Table size |
400 x 320 mm |
|
T-slot size |
14 mm |
|
Working surface of base |
320 x 340 mm |
|
Motor power output S1 100% |
0,55 / 0,85 kW |
|
Motor power input S6 40% |
0,80 / 1,2 kW |
|
Machine dimensions (W x D x H) |
470 x 810 x 1710 mm |
|
Weight approx. |
245 kg |
