The solid, state of the art column drilling machine is available with 25 mm drilling capacity, larger diameter holes can easily be achieved when core drilling. This model is equipped with right and left turning switch. The optimal price to performance ratio makes these models immensely popular among model makers ans amateurs and they are widly used in the agricultural sector and repair shops.
Properties Bernardo drilling machine SB 25 S
- High-quality ball bearings ensure high spindle concentricity
- Surface treated work table can be adjusted in height via gear rack and crank
- Switch for left and right turning
- Powerful, high torque aluminium motor according to IP 54 standard
- Precise keyless drill chuck comes standard
- Treated base allows clamping of oversize workpieces
- Drill table (±45°), height adjustable via gear rack
- Large drill table features T-slots and coolant groove
Standard accessories Bernardo drilling machine SB 25 S
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 3 / B 18
- Height adjustable protective cover
- Separate emergency stop switch
- Switch for left and right turning
- T-slot nuts
- Tools
Technical specifications Bernardo drilling machine SB 25 S
|
Drilling capacity max. |
25 mm |
|
Drill chuck |
1 - 16 mm / B 18 |
|
Morse taper |
MT 3 |
|

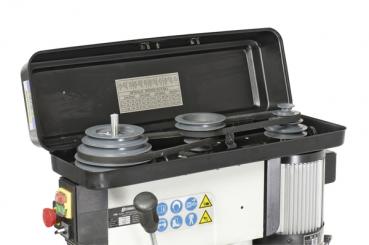

Spindle speeds |
(12) 280 - 2380 rpm |
|
Distance spindle to column |
175 mm |
|
Table tiltable |
-45° to +45° |
|
Distance spindle to table max. |
685 mm |
|
Distance spindle to base |
1175 mm |
|
Spindle stroke |
85 mm |
|
Column diameter |
80 mm |
|
Table size / T-slot size |
290 x 290 mm / 16 mm |
|
Working surface of base |
205 x 205 mm |
|
Motor power output S1 100% |
0,75 kW / 400 V |
|
Motor power input S6 40% |
1,1 kW / 400 V |
|
Machine dimension (W x D x H) |
380 x 660 x 1560 mm |
|
Weight approx. |
65 kg |
