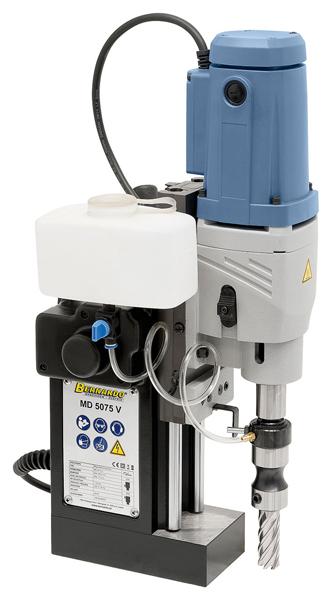

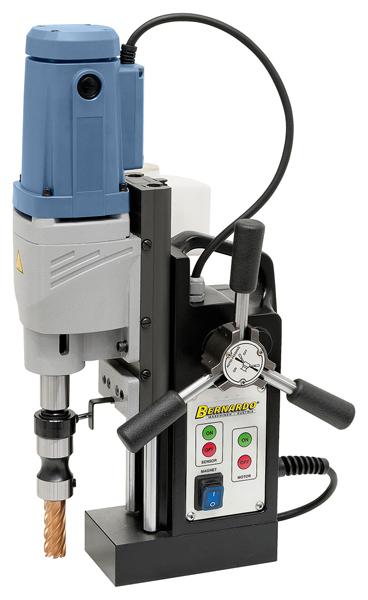

Bernardo drilling machine MD 5075 V
Features Bernardo drilling machine MD 5075 V
- MT 2 taper shank allows clamping of several tools (twist drills, counterborers, reamers, etc.)
- Manual or automatic spindle feed
- Automatic drill feed significantly reduces time and costs
- Ideal useable for building site and assembly works
- Ideal machine for heavy duty drilling operations
- Automatic central lubrication, coolant fluid directed from tip of core drill bit
Standard accessories Bernardo drilling machine MD 5075 V
- Safety chain
- Metal container
- Coolant tank
- Adapter MT 2 / Weldon shank 19 mm
Technical specifications Bernardo drilling machine MD 5075 V
|
Core drill max. Ø |
50 mm |
|
Core drill max. drill depth |
75 mm |
|
Twist drill max. Ø |
16 mm |
|
Travel of drill head max. |
205 mm |
|
Idle speed |
230 / 550 rpm |
|
Feed speed |
22 mm/min |
|
Spindle taper |
MT 2 |
|
Arbor weldon shank |
19 mm |
|
Distance spindle / base max. |
255 mm |
|
Distance weldon shank / base max. |
165 mm |
|
Magnetic adhesion |
12800 N |
|
Dimension magnetic base (L x W x H) |
178 x 94 x 44 mm |
|
Motor power |
1550 W |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
280 x 260 x 635 mm |
|
Weight approx. |
20,65 kg |
