Bernardo drilling machine DMS 32
The drilling machine DMS 32 features a solid construction, making them highly suitable for continuous use.
Properties Bernardo drilling machine DMS 32
- Surface treated work table, height adjustable via gear rack and crank
- Polished base plate features T-slots for mounting of large workpieces
- V-belt with balanced drive pulleys ensure smooth running
- Adjustable drill depth stop allows accurate spindle feed
- High concentricity ≤ 0,02 mm measured at spindle
- Coolant device comes standard
- Powerful motor even at continuous operation
- Solid drilling machine for industrial use
Standard accessories Bernardo drilling machine DMS 32
- Drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 3 / B 18
- Morse taper drill sleeve MT 3 / 2
- Coolant pump

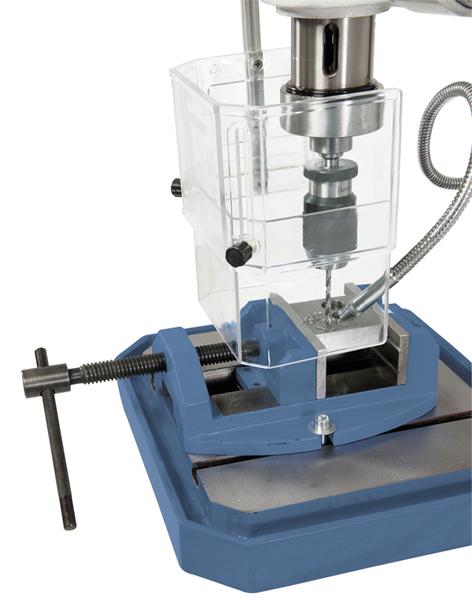

- Height adjustable protective cover
- Separate emergency stop switch
Technical specifications Bernardo drilling machine DMS 32
| Drilling capacity max. | 32 mm |
| Drill chuck | 1 - 16 mm / B 18 |
| Morse taper | MT 3 |
| Spindle speeds | (9) 160 - 1880 rpm |
| Distance spindle to column | 230 mm |
| Distance spindle to table max. | 700 mm |
| Distance spindle to base | 1170 mm |
| Spindle stroke | 130 mm |
| Column diameter | 102 mm |
| Table size / T-slot size | 450 x 400 mm / 14 mm |
| Working surface of base | 320 x 300 mm |
| Motor power output S1 100% | 1,1 kW / 400 V |
| Motor power input S6 40% | 1,6 kW / 400 V |
| Machine dimensions (W x D x H) | 460 x 810 x 1740 mm |
| Weight approx. | 244 kg |
