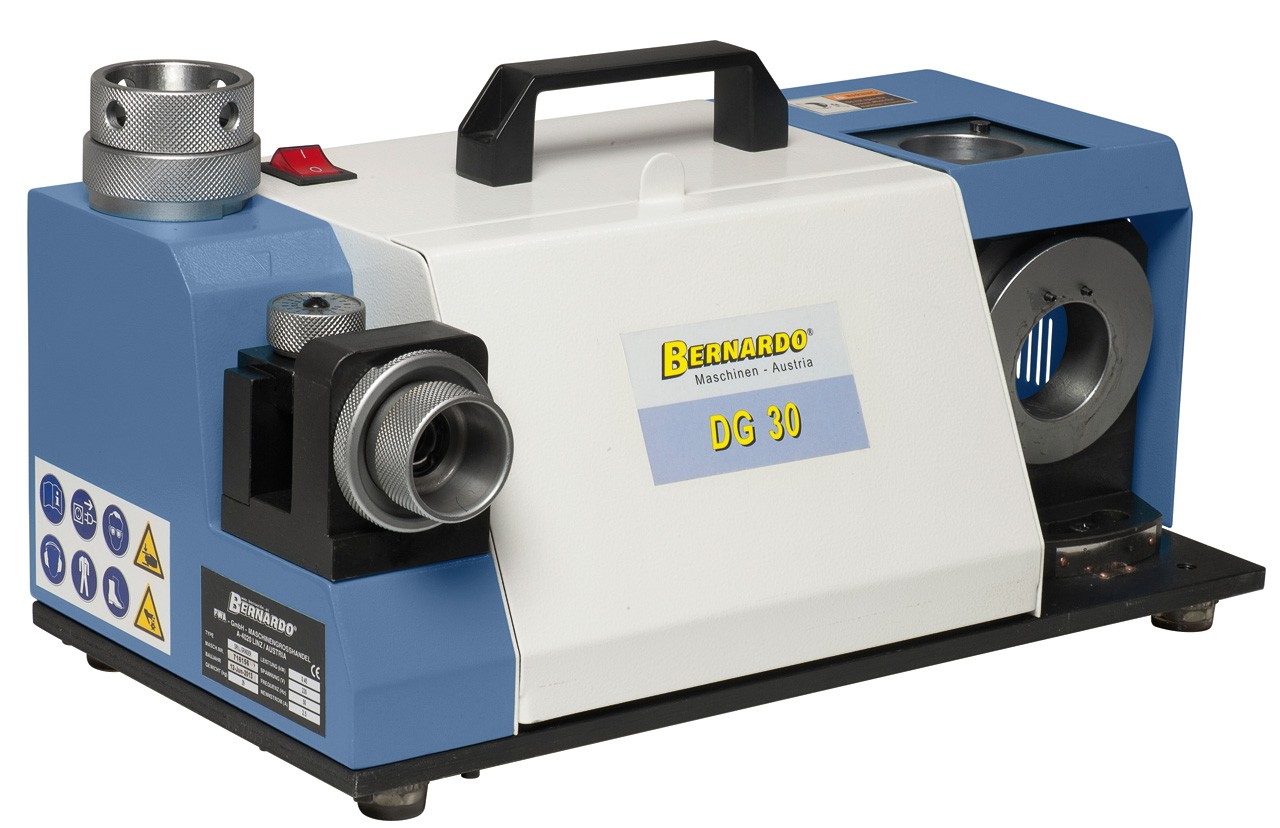

The drill grinding machine DG 30 is suitable for all common 2-flute twist drills made of HSS, cobalt or carbide and the like from 2 - 30 mm. High economic efficiency due to the fast grinding process at low investment costs.
**This machine has unfortunately been taken out of the Bernardo product range! You can find further alternatives in the Bernardo drill grinding machine category!**
Features Bernardo drill grinding machine DG 30
- Fast and easy grinding process: 3 mm drill in only 20 seconds, 19 mm drill within 60 seconds

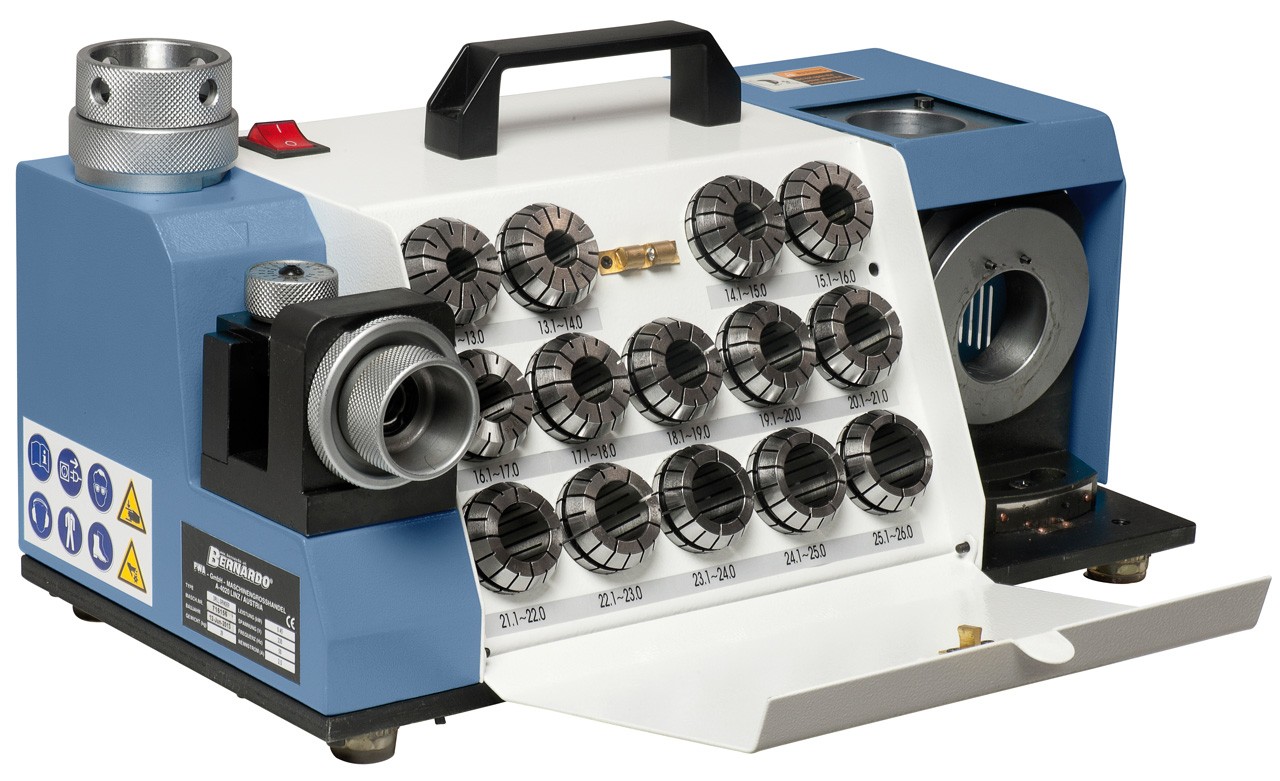

- 28 pcs. ER 20 and ER 40 collets included, which are also suitable for clamping intermediate sizes
- For grinding HSS, carbide or TiN-coated twist drills from 2 - 30 mm
- Rotor with precision ball bearing ensures very smooth running
- Vibration-free running due to high dead weight and rubber feet
- Point angle adjustable for all common twist drills
Scope of delivery Bernardo drill grinding machine DG 30
- Grinding wheel CBN

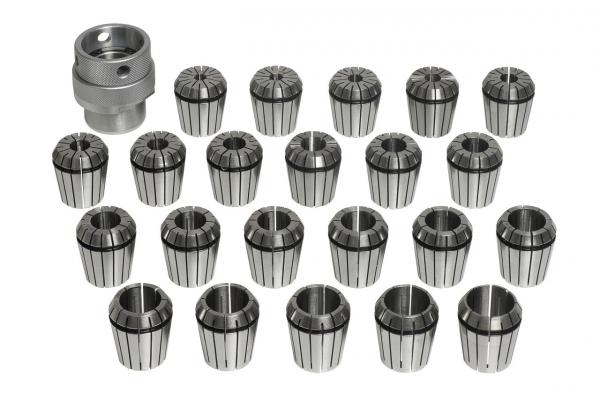

- Collets ER 20, 3 - 8 mm, 6 pcs.
- Collets ER 40, 9 - 30 mm, 22 pcs. (gradation 1 mm)
- Collet holder ER 20 or ER 40
- Operating tool
Available special accessories Bernardo drill grinding machine DG 30
- Grinding wheel CBN (Art.No.:05-1703)
- Diamond grinding wheel SBC for carbide (Art.No.:05-1704)
Technical data Bernardo drill grinding machine DG 30
|
Drill diameter
|
2 – 30 mm
|
|
Point angle
|
90° - 135°
|
|
Speed
|
3500 rpm
|
|
Engine power
|
0,45 kW
|
|
Voltage
|
230 V
|
|
Length
|
430 mm
|
|
Wide
|
220 mm
|
|
Height
|
220 mm
|
|
Weight approx.
|
31 kg
|
