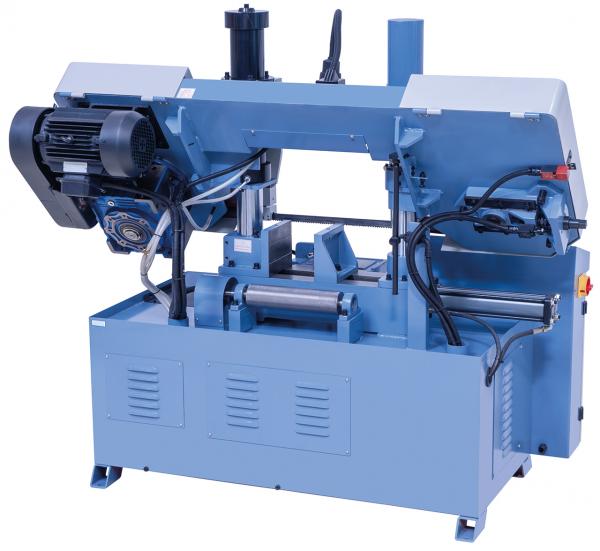

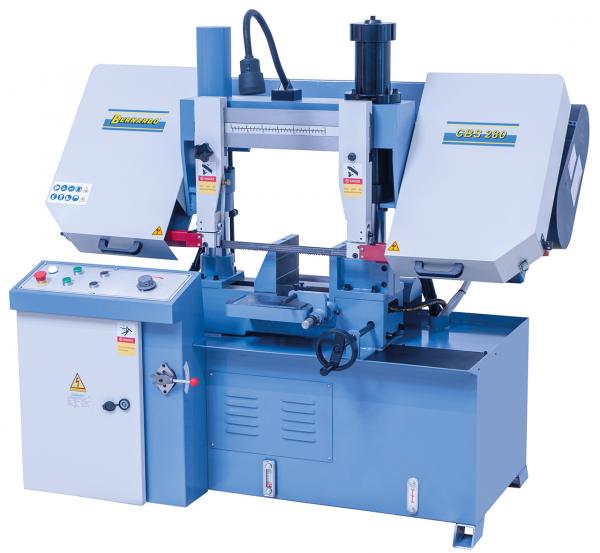

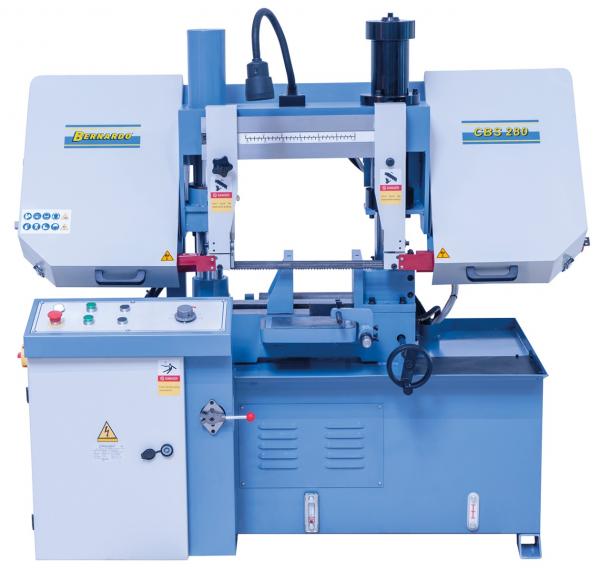

Bernardo Double Column Horitzon Bandsaw CBS 280
Product features Bernardo double-column horizontal bandsaw CBS 280
The CBS 280 double-column horizontal bandsaw has the significant advantage that the saw frame is fed via precision-ground column guides. This makes this machine ideal for processing blocks of solid material.
- For cutting profiles, pipes, solid materials made of iron and non-ferrous materials.
- Driven by a V-belt drive with 3 cutting speeds (27 / 45 / 69 m/min)
- Low-vibration operation due to robust double column guide and heavy machine body
- Hydraulic vice for easy clamping of the workpiece
- Torsion-free, strongly dimensioned saw arm made of spheroidal cast iron
- Automatic limit stop after material average

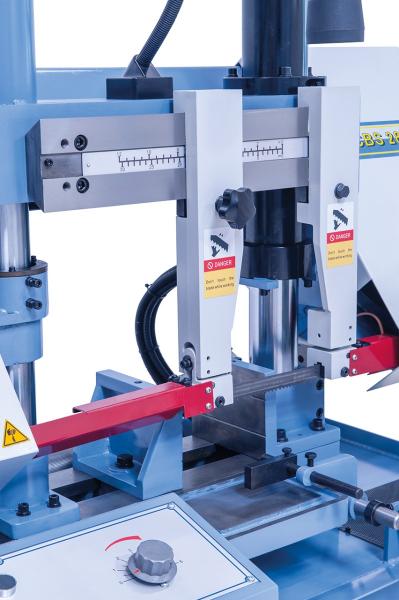

- Ball bearing saw blade guide with quick adjustment for adaptation to the workpiece width guarantees an optimal working result
- Adjustable hydraulic cylinder for regulating the support pressure of the saw bow
- Robust and vibration-free construction for professional use
Scope of delivery Bernardo CBS 280 double-column horizontal bandsaw
- Saw band
- Workpiece stop
- Hydraulic vice
- Coolant device
- Hydraulic lowering cylinder
- Working light
- Motor protection switch
- Cutting pressure regulation
- Automatic belt breakage control
- Automatic end stop
- Workpiece support
Technical data Bernardo double-column horizontal bandsaw CBS 280
Cutting range around 90 | 280 mm |
Cutting range flat 90° | 280 x 280 mm |
Cutting range square 90° | 280 x 280 mm |
Working height | 670 mm |
Cutting speed | 27 / 45 / 69 m/min |
Saw band dimension | 3505 x 27 x 0,9 mm |
Coolant pump | 0,045 kW |
Engine power hydraulic pump | 0,55 kW |
Engine power | 3,0 kW |
Machine dimension (L x D x H) | 1670 x 1130 x 1640 mm |
Weight approx. | 670 kg |
