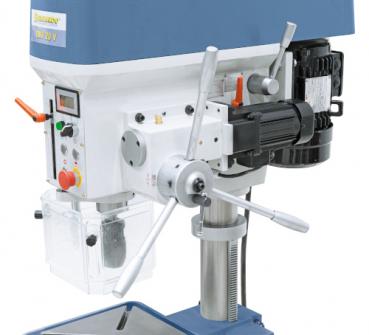

Bernardo DMT 20 V column drilling machine

The bench drill DMT 20 V offers excellent performance and high accuracy at an extremely competitive price. The compact design makes this model ideal for general workshop use.

Features Bernardo DMT 20 V column drill​

• protective cover according to CE standard, adjustable to the respective drill length
• Surface-treated worktable, height adjustable via gear rack and crank handle
• Ground base plate with T-slots for clamping high workpieces
• With automatic quill feed as standard
• Adjustable drilling depth stop for exact positioning of the sleeve
• Guaranteed concentricity ≤ 0.02 mm measured in the sleeve
• Powerful drive motor even in continuous operation
• Robust and powerful drills for heavy-duty use
• Including automatic reversal of rotation direction for thread cutting

• Gear rim drill chuck 1 - 16 mm / B 18
• Drill chuck arbor MK 2 / B 18
• Automatic spindle sleeve feed
• Digital speed display
• Thread cutting device
• LED machine light
• Height-adjustable protective cover

Technical data Bernardo DMT 20 V column drill​
