Bernardo DMT 20 TSV Vario table and column drilling machine

Product No.:
01-1191
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
190 kg per piece
2.723,66 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Product Highlights Bernardo DMT 20 TSV Vario table and column drilling machine​

  • Surface-treated worktable, height adjustable via gear rack and crank handle
  • Infinitely variable speed, ideal for setting the desired cutting speed
  • Robust and powerful drills for heavy-duty use
  • Guaranteed concentricity ≤ 0.02 mm measured in the sleeve

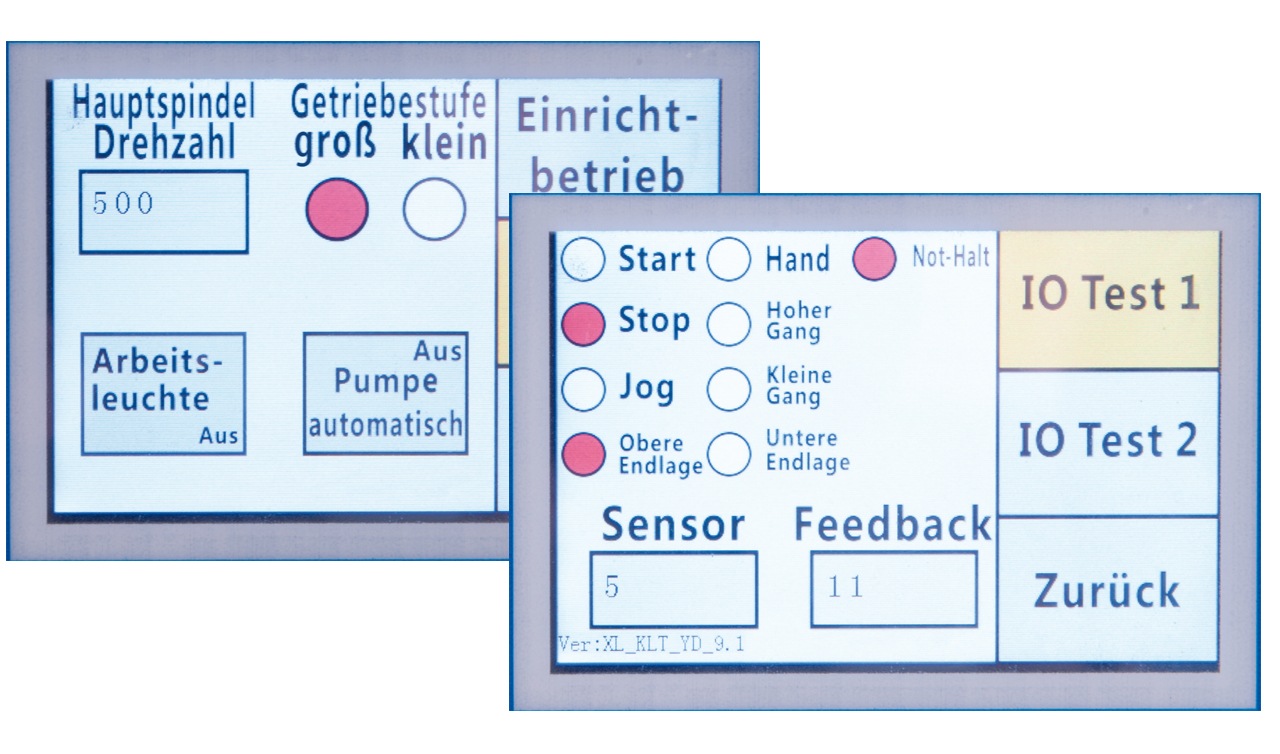

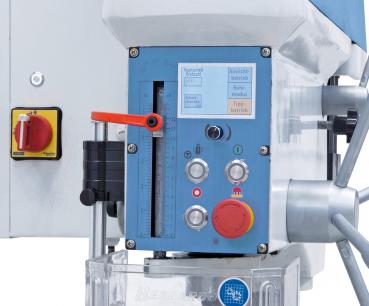

  • Convenient operation (speed setting, LED work light, ....) via touch screen
  • Protective cover according to CE standard, adjustable to the respective drill bit length
  • Powerful drive motor even in continuous operation
  • Including automatic reversal of the direction of rotation for thread cutting

Scope of delivery Bernardo DMT 20 TSV Vario table and column drilling machine​

  • Gear rim drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MK 2 / B 18
  • Digital speed display
  • Thread cutting device
  • LED machine lamp
  • Height-adjustable protective cover

Technical data Bernardo DMT 20 TSV Vario table and column drilling machine​

Max. drilling capacity

20 mm

Thread cutting max.

M 16

Morse taper

MK 2

Spindle speed

205 - 2045 rpm

Invitation

240 mm

max. distance spindle / table

360 mm

Distance spindle / base plate

680 mm

Sleeve stroke

135 mm

Column diameter

85 mm

Table size / T-slot size

250 x 250 mm / 14 mm

Work surface Base plate

365 x 305 mm

Motor output power S1 100%

1,5 kW / 400 V

Motor input power S6 40%

2,2 kW / 400 V

Machine dimensions (W x D x H)

530 x 880 x 1250 mm

Weight approx.

190 kg
