Bernardo DM 305 V copy lathe
Features Bernardo DM 305 V copy lathe
- Steplessly adjustable spindle speed allows for optimal adjustment to workpiece
- Machine bed, tail- and spindle stock consists of solid grey cast-iron to eliminate vibrations
- Large speed range from 750 – 3200 rpm, steplessly addjustable
- Robust spindle, mounted with precision to ensure concentricity

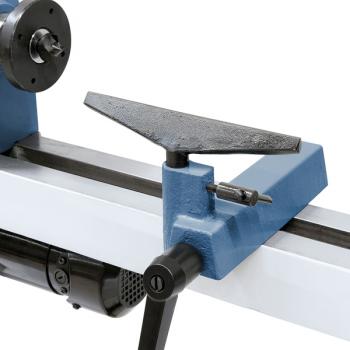

- Solid tool rest ensures sufficient support for chisels
- Extensive range of extra equipment to widen the choice of applications
- Tailstock spindle features hole to allow processing of long workpieces
- Quick clamping lever allows for fast clamping of tailstock to machine bed
Standard accessories Bernardo DM 305 V copy lathe
- 2 pcs. tool rest 110 / 175 mm
- 2 pcs. face plate 60 / 145 mm
- Spore drive center
- Live center
- Stepless speed adjustment
- Tools
Technical specifications Bernardo DM 305 V copy lathe
|
Distance between centers |
345 mm |
|
Working diameter |
|
|
- over guideway |
210 mm |
|
- over support |
140 mm |
|
Spindle speeds |
750 - 3200 rpm, stepless |
|
Spindle thread |
M 33 x 3,5 mm |
|
Taper of tailstock sleeve |
MT 1 |
|
Travel of tailstock sleeve |
38 mm |
|
Motor power output S1 100% |
0,25 kW (0,34 HP) |
|
Motor power input S6 40% |
0,31 kW (0,42 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
660 x 250 x 310 mm |
|
Weight approx. |
20 kg |
