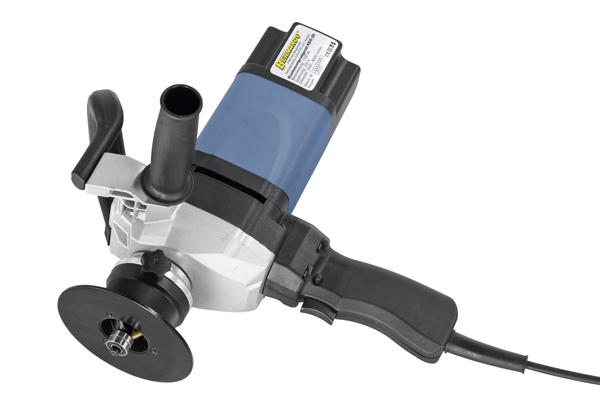

The KEG 20 model is the ideal tool for deburring and chamfering a wide variety of materials. The cost-effective model can be used without any problems for inner and outer edges as well as for milling radii and bores from diam. 20 mm.
Features Bernardo Deburring Machine - Chamfering Machine KEG 20
- Infinitely variable speed to adapt to the respective workpiece
- Including milling head 45° and 2 TiN-coated inserts
- Light and compact design for easy handling

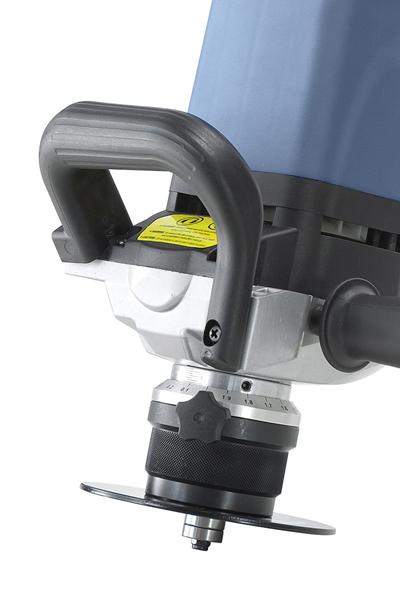

- Stepless adjustment of chamfer width without tools
- Ergonomic two-hand operation for fatigue-free working
- For machining steel, stainless steel, plastics and non-ferrous materials
- Quick and easy removal of cut edges
- For machining a wide range of contours
- Ideal for producing visible edges with excellent surface quality
- Ideal for removing sharp corners and edges
Scope of delivery Bernardo deburring machine - chamfering machine KEG 20

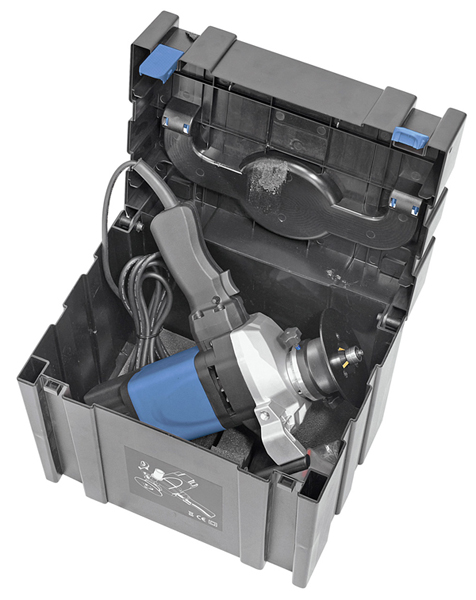

- Plastic box

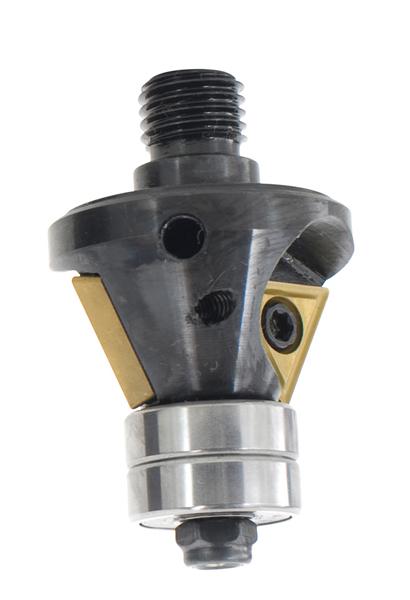

- 45° milling head with HM indexable inserts
- Side handle
- Operating tool
Available special accessories Bernardo deburring machine - chamfering machine KEG 20
- Milling head 30° (without inserts) (Art.No.:05-1741)
- Milling head 45° (without inserts) (Art.No.:05-1741A)
- HM inserts (10 pcs.) (Art.No.:05-1742)
Technical Data Bernardo Deburring Machine - Chamfering Machine KEG 20
|
Chamfer angle
|
45° (optional 30°)
|
|
Chamfer width
|
0 - 6 mm
|
|
Adjustable chamfer size
|
0,1 mm
|
|
Smallest inner radius
|
20 mm
|
|
Insert assembly
|
2 pcs.
|
|
Speed, stepless
|
3000 - 6000 rpm
|
|
Engine power
|
1200 W
|
|
Voltage
|
230 V
|
|
Machine dimension (L x W x H)
|
420 x 270 x 340 mm
|
|
Weight approx.
|
4,6 kg
|
