Bernardo Cycle lathe FEL 1860 ENC - 460 x 1400

• Equipped as standard with 2 electronic handwheels for manual traverse in x- and z-axis.
• Both axes equipped with AC servo motors and ball screws
• Wide cross slide to accommodate various steel holder systems

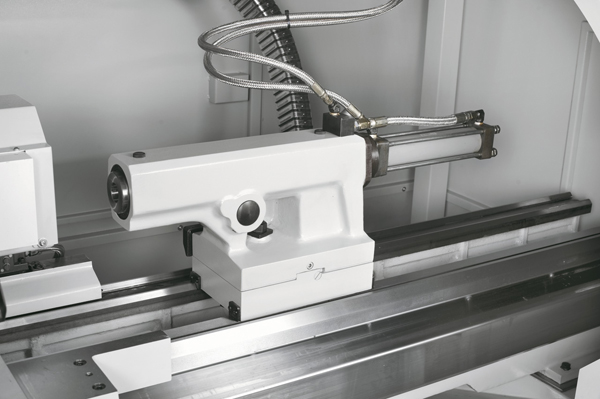

• Stable tailstock with enlarged projection, ideal when using the automatic 8-cavity tool turret
• Stepless speed range via 2 pneumatically switched gear stages
• High rapid traverse speed to reduce non-productive time
• Main drive and feed drives driven by brushless AC motors
• Main spindle with preloaded precision angular contact ball bearings guarantees high accuracy
• User-friendly and easy-to-learn cycle control Fagor 8055 TC
• Sturdy spindle head with precision-bearing main spindle (spindle bore 65 mm)

Scope of delivery Bernardo Cycle lathe FEL 1860 ENC - 460 x 1400

• Fagor 8055 TC cycle control
• Coolant unit
• Quadruple steel holder
• Machine light
• Travelling centre punch MK 4
• Swivelling control panel
• Automatic lubrication of the spindle head
• Automatic lubrication of the longitudinal and cross slide
• 2 electronic handwheels
• Interface RS 232
• Full machine enclosure
• Operating tool

Available optional accessories Bernardo Cycle lathe FEL 1860 ENC - 460 x 1400

• 3-jaw chuck diam. 250 mm A2-6 *
• Hydraulic 3-jaw chuck diam. 200 mm with hydraulic unit*.
• Automatic 4-fold tool changer H4*
• Automatic 8-position tool turret *
• Hydraulic adjustment of tailstock quill *
• Chip conveyor
• Fixed steady rest
• Moving steady rest

Technical data Bernardo Cycle lathe FEL 1860 ENC - 460 x 1400
