The FEL cycle lathe is suitable for economic production of single parts and small series at best possible accuracy and can be used for light to medium-heavy turning works.
Features Bernardo cycle lathe FEL 1840 ENC - 460 x 900
- 2 electronic handwheels for manual travel of x- and y-axis come standard
- Both axis feature AC-servo motors and ball screw
- Wide cross slide allows mounting of various tool post holders

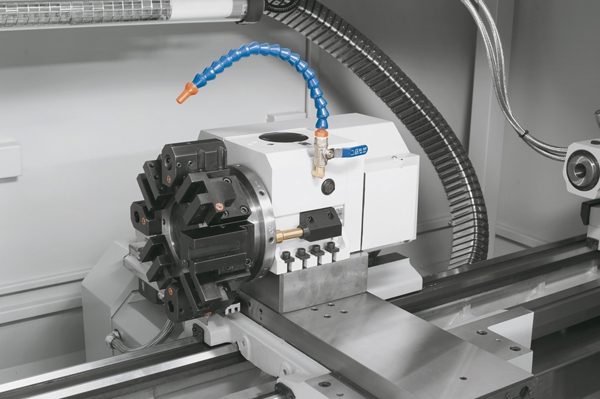

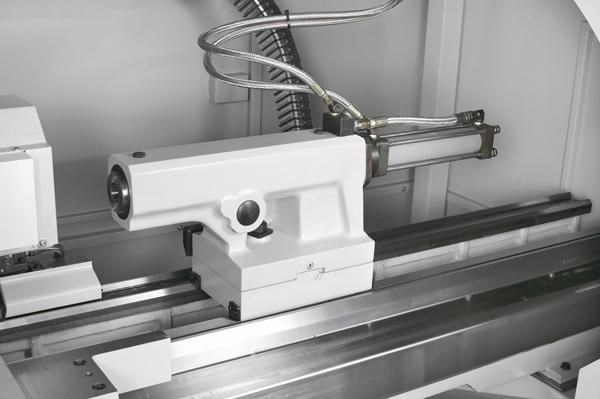

- Solid tailstock features oversize throat - ideal when using automatic 8-station turret
- Stepless speed range via 2 pneumatically adjusted gear settings
- High rapid traverse allows significant reduction of downtime
- Brushless AC-motor drive and feed drive

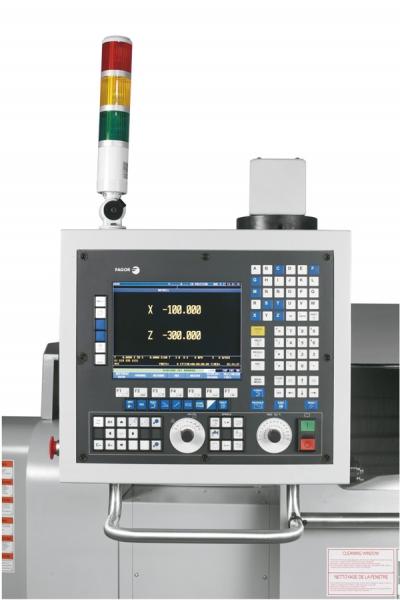

- User-friendyl, easy-to-understand Fagor 8055 TC control
- Solid headstock features precisely bedded main spindle (spindle bore 65 mm)
- Main spindle features pre-tightened high-quality angular bearings, guaranteeing best possible accuracy
Standard accessories Bernardo cycle lathe FEL 1840 ENC - 460 x 900
- Cycle control Fagor 8055 TC
- Coolant device
- 4-way tool post holder
- Machine light
- Live center MT 4
- Tiltable control panel
- Automatic lubrication of spindle head
- Automatic lubrication of longitudinal and cross slide
- 2 electronic handwheels
- Serial interface RS 232
- Machine casing
- Tools
Technical specifications Bernardo cycle lathe FEL 1840 ENC - 460 x 900
|
Distance between centers |
900 mm |
|
Center height |
230 mm |
|
Swing over bed |
460 mm |
|
Swing over cross slide |
260 mm |
|
Bed width |
305 mm |
|
Spindle bore |
65 mm |
| Spindle nose fixture | A2-6 |
|
Speed range |
270 - 830 / 831 - 2500 rpm |
|
Travel x-axis |
230 mm |
|
Travel z-axis |
850 mm |
|
Rapid feed x- / z-Axis |
7,5 / 10 m/min |
|
Diameter of tailstock sleeve |
68 mm |
|
Travel of tailstock sleeve |
152 mm |
|
Taper of tailstock sleeve |
MT 4 |
|
Motor power output S1 100% |
7,5 kW |
|
Motor power input S6 40% |
11,0 kW |
|
Weight approx. |
2350 kg |
