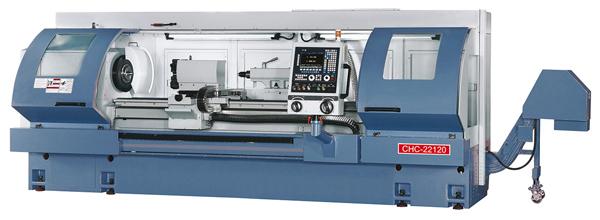

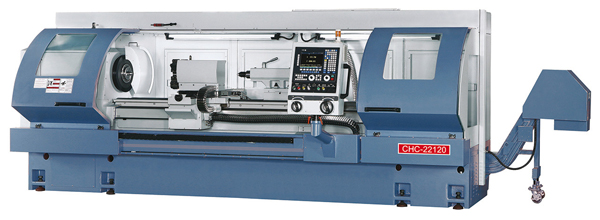

Bernardo Cycle lathe CHC 2280 - 550 x 1870
Bernardo Cycle lathe CHC 2280 - 550 x 1870
Bernardo Cycle lathe CHC 2280 - 550 x 1870

Bernardo Cycle lathe CHC 2280 - 550 x 1870

Product No.:
03-1434XL
on request on request (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
4800 kg per piece
Price on request
Ask about product
Description

Technical data Bernardo Cycle lathe CHC 2280 - 550 x 1870

Peak width

1870 mm

Centre height

265 mm

Swing diameter over bed

550 mm

Swing diameter over cross slide

325 mm

Bed width

345 mm

Spindle bore

91 mm

Spindle mount

A2-8

Speed range, infinitely variable

35 - 3500 rpm

Travel x-axis

300 mm

Travel z-axis

1780 mm

Rapid traverse x- / z-axis

7,5 / 10 m/min.

Pinole diameter

85 mm

Spindle sleeve holder

MK 5

Motor output power S1 100%

9,0 kW

Motor input power S6 40%

12,6 kW

Weight approx.

4800 kg
