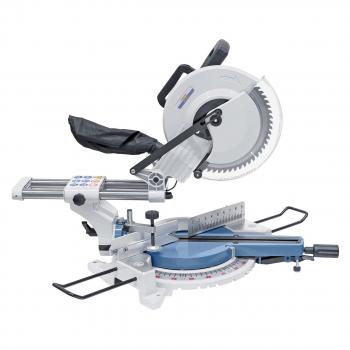

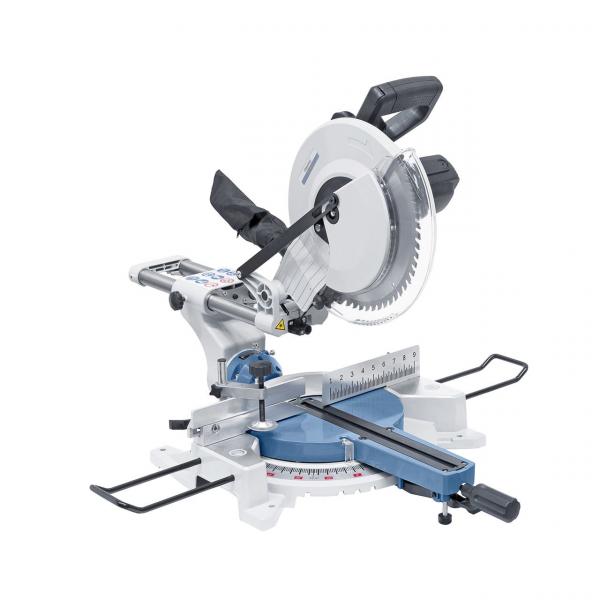

Features Bernardo crosscut saw ZKG 305 S pull and mitre saw
The powerful ZKG 305 S can be used for cross-cut, angular and mitre cuts. The particularly large cutting width of 305 mm, the linear laser device for precise cuts and the high stop rails for secure fixing of the workpieces make this model ideal for the professional do-it-yourselfer.
- Suitable for cutting wood, plastics and non-ferrous metals
- Precise double column guide for easy and even pulling movement
- Powerful drive motor for best cutting results even under prolonged load
- Standard HM saw blade (60 teeth) for high cutting quality and tear-free cuts
- Table widening on both sides for placing longer work pieces
- Equipped with integrated cutting depth limiter for cutting grooves
- When folding up the saw unit, the saw blade is automatically concealed
- Can be used for cross-cut, angular and mitre cuts
- Standard with extraction option directly on the saw unit
- Simple and quick saw blade change by means of locking device
- Turntable with locking function at 0° / 15° / 22,5° / 30° / 45°.
- Low own weight, therefore easy to transport
- Inclination, mitre and cutting width scale easily visible
Scope of delivery Bernardo ZKG 305 S cross-cut and mitre saw
- HM saw blade 305 x 2.8 x 30 mm / Z60

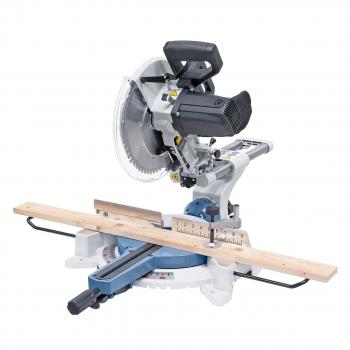

- Table extension

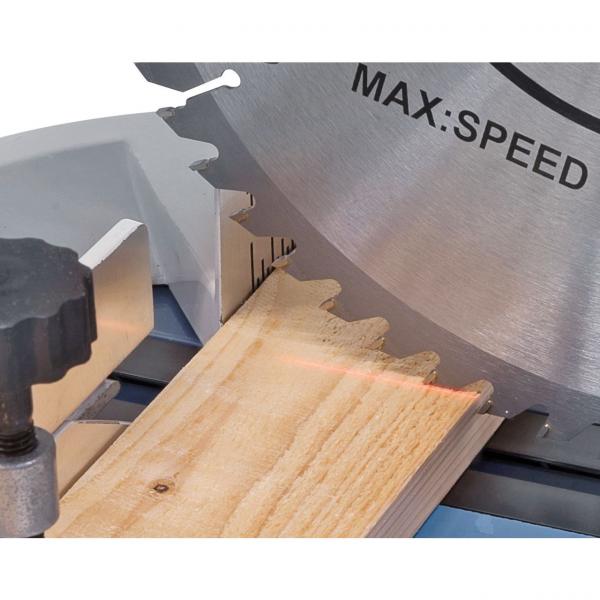

- Linear laser device
- Chip collection bag
- Hold-down device
Technical data Bernardo cross-cut saw ZKG 305 S pull and mitre saw
|
Saw blade diameter x bore
|
305 x 30 mm
|
|
Idle speed
|
4800 rpm
|
|
Cutting range
|
|
|
Straight at 90° / 90
|
305 x 105 mm
|
|
Mitre at 45° right / left*
|
210 x 105 mm
|
|
Slope cut at 45° left**
|
305 x 50 mm
|
|
Double mitre cut at 45° left
|
210 x 50 mm
|
|
Engine power
|
1.8 kW (2.4 hp)
|
|
Voltage
|
230 V
|
|
Machine dimension (W x D x H)
|
910 x 1080 x 670 mm
|
|
Weight approx.
|
20 kg
|
* Turntable
** Saw unit
