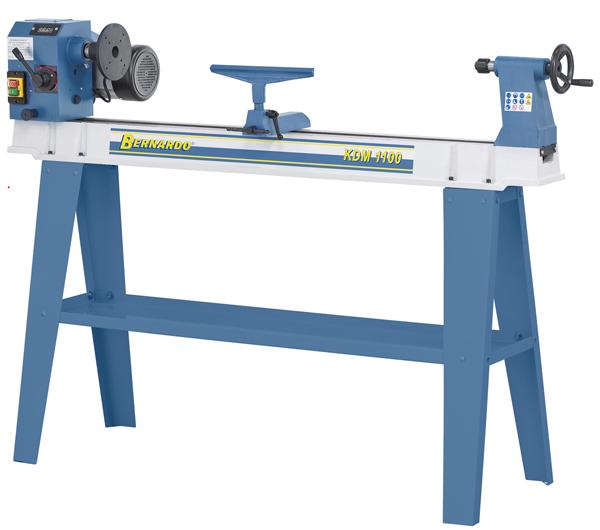

Bernardo Copy turning machine KDM 1100 - 230 V
Properties Bernardo Copy turning machine KDM 1100 - 230 V
- Copying device allows copying of original parts or templates
- Tailstock sleeve with bore ensures convenient processing of long workpieces
- Digital display guarantees easy speed adjustment
- Stepless speed setting allows optimal adjustment to each workpiece
- Solid, precisely bedded spindle ensures high concentricity
- Turnable spindle stock for working outside of the machine bed
- Grey cast-iron construction for vibration-free work
- High-quality belt drive ensures optimal power transmission from motor to spindle
- Quick clamping lever enables fast locking of tailstock onto machine bed
Standard accessories Bernardo Copy turning machine KDM 1100 - 230 V:
- Tool rest 300 mm
- Face plate 150 mm
- Live center
- Spore drive center
- Copying device
- Stepless speed adjustment
- Digital speed indication
- Stand
- Tools
Technical specifications Bernardo Copy turning machine KDM 1100 - 230 V:
|
Distance between centers |
1100 mm |
|
Working diameter |
|
|
- over guideway |
370 mm |
|
- at copying |
160 mm |
|
Spindle speed, stepless |
500 - 2000 rpm |
|
Spindle thread |
M 33 x 3,5 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Travel of tailstock sleeve |
50 mm |
|
Copying length |
850 mm |
|
Motor power output S1 100% |
0,75 kW (1,0 HP) |
|
Motor power input S6 40% |
1,1 kW (1,5 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
1650 x 750 x 1150 mm |
|
Weight approx. |
92 kg |
