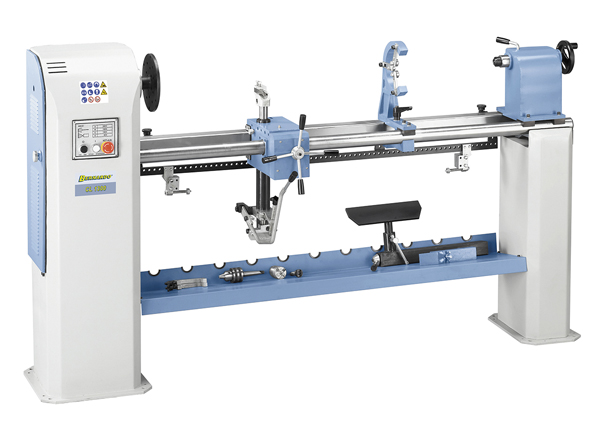

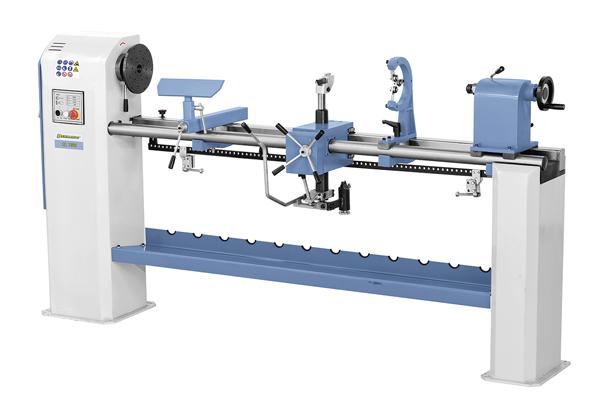

Bernardo Copy turning machine CL 1500
Properties Bernardo Copy turning machine CL 1500
- The extensive range of accessories includes: 290 mm tool rest, 200 mm face plate, live centre and spore drive centre
- Copying device for copying of original parts or from templates
- Tailstock sleeve features drilled passageway bore to process long workpieces
- Powerful drive motor designed for challenging operations
- High-quality belt drive, featuring four speed settings, allows for optimal transmission
- Solid, grey cast-iron construction allows for operating without vibrations
- Ergonomically arranged switches and control elements on front of machine
- Solid, precisely bedded spindle ensures high concentricity
- Extensive range of accessories guarantees optimal price to performance ratio
Standard accessories Bernardo Copy turning machine CL 1500:
- Copying device
- Steady rest
- Tool rest 290 mm
- Face plate 200 mm
- Live center MT 2
- Spore drive center diam. 40 mm
- Drill chuck 3 - 16 mm / B 16
- Drill chuck arbor MT 2 - B 16
- V- Cutter knife in HSS-quality
Technical specifications Bernardo Copy turning machine CL 1500:
| Distance between centers | 1500 mm |
| Working diameter |
|
| - over guideway | 430 mm |
| - over support | 160 mm |
| - at copying* | 160 mm |
| Spindle speeds | 500 / 1000 / 1950 / 2800 rpm |
| Spindle thread | M 33 x 3,5 mm |
| Tailstock |
|
| Taper of tailstock sleeve | MT 2 |
| Travel of tailstock sleeve | 100 mm |
| Copy attachment |
|
| Copying length | 1500 mm |
| Max. copying depth | 45 mm |
| Motor power output S1 100% | 1,1 kW (1,5 HP) |
| Motor power input S6 40% | 1,5 kW (2,0 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 2300 x 700 x 1170 mm |
| Weight approx. | 228 kg |
* to template
