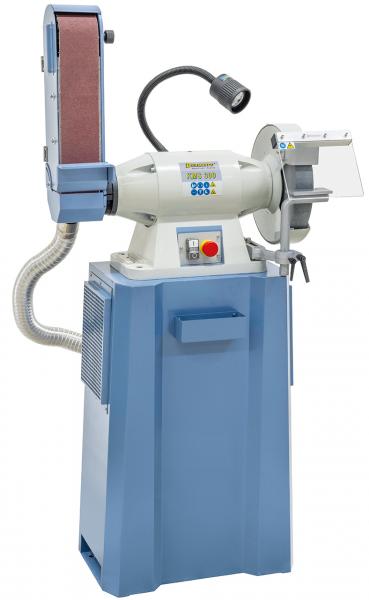

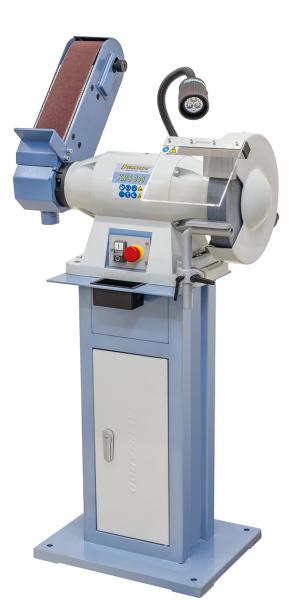

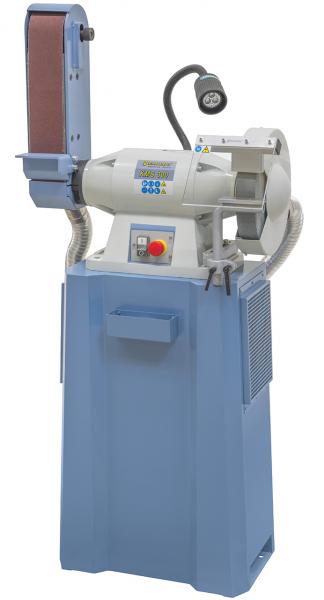

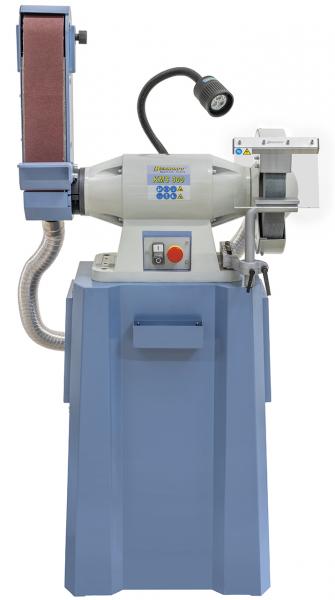

Features Bernardo combination belt sander KMS 300 / 400 V
Universal combination belt sander for professional users. The induction motor runs quietly and maintenance-free thanks to the quality ball bearings. The powerful drive motor and robust design make this machine ideal for professional use in workshops.
- Heavy-duty design and high-quality equipment, ideal for industrial use
- Can be used universally for a wide range of materials (metal, plastic, wood, etc.)
- Combination of belt sanding and conventional sanding
- The sanding attachment can be used in both horizontal and vertical positions

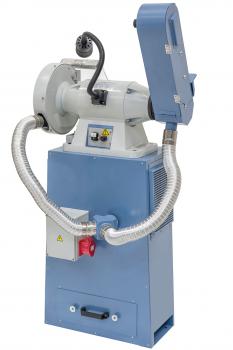

- Optionally available with extraction system, ideal for avoiding high dust exposure
- Powerful drive motor for high traction
Scope of delivery Bernardo combination belt sander KMS 300 / 400 V
- Grinding disc K 36
- Sanding belt K 80
- Sanding attachment SA 3
- Graphite coating
- Workpiece support
- Hinged protective disc
- LED work light
Technical data Bernardo combination belt sander KMS 300 / 400 V
| Grinding disc Ø x B |
300 x 50 mm |
| Grinding disc bore |
137 mm |
| Grinding disc grit |
K36 |
| Sanding belt |
1190 x 100 mm |
| Grinding disc speed |
1450 rpm |
| Sanding belt speed |
40 m/sek. |
| Suction connection Ø |
35 / 50 mm |
| Swivelling range of grinding attachment |
90° |
| Sanding support |
255 x 100 mm |
| Motor output power S1 100% |
2,2 kW |
| Motor power consumption S6 40% |
3,0 kW |
| Tension |
400 V |
| Width |
720 mm |
| Depth |
470 mm |
| Height |
680 mm |
| Weight approx. |
80 kg |
