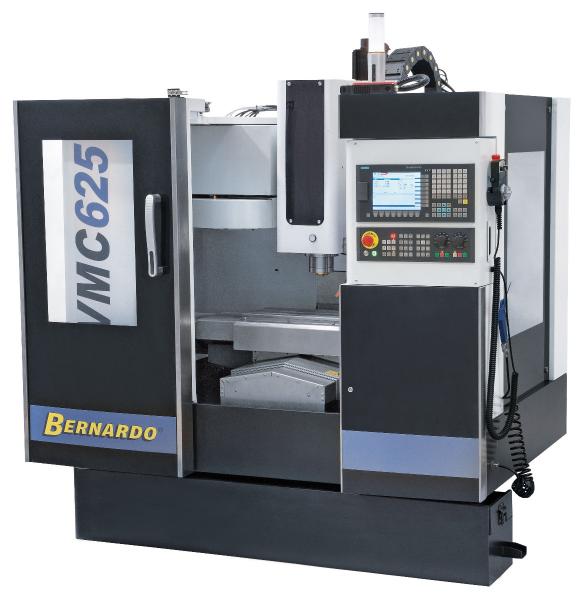

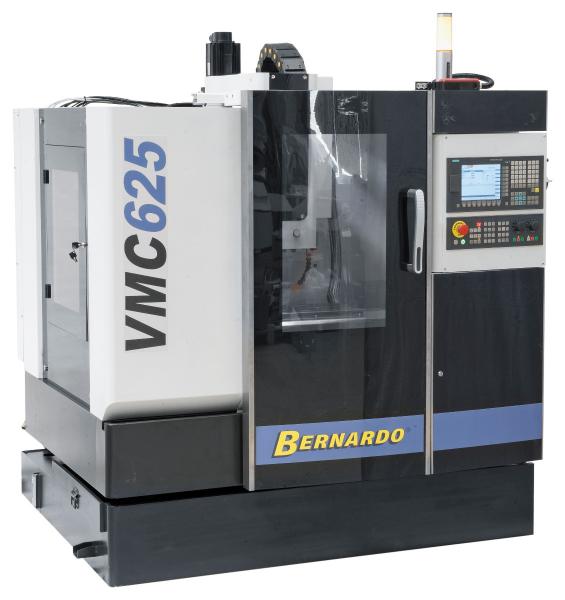

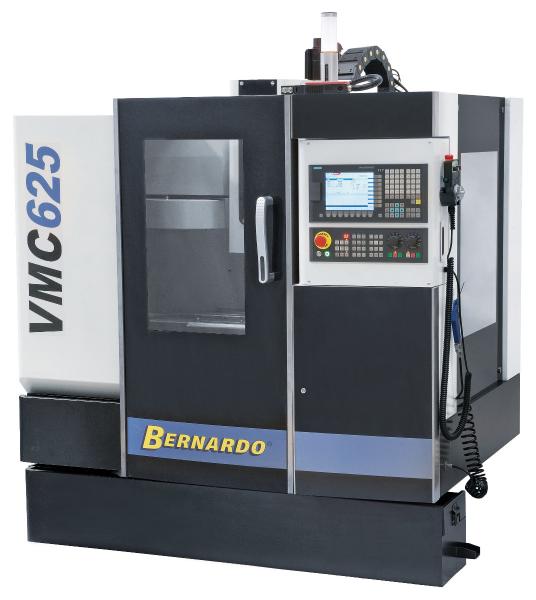

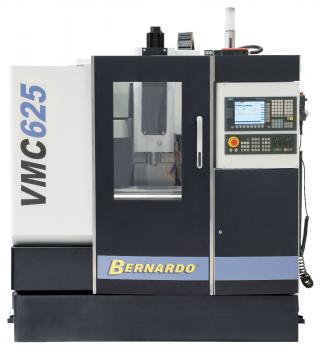

Product features Bernardo CNC vertical machining centre VMC 625
The CNC vertical machining centre VMC 625 with the Siemens Sinumerik 808D Advanced control is the ideal machine for CNC beginners, but is also popular as a second machine next to large CNC centres. Due to the unbeatable price-performance ratio, this model is optimally suited for the production of cost-effective small and medium-sized series.
- Full machine enclosure with a sliding door at the front and 1 side door for easy access
- Stable cast-iron frame in rigid bed design for high running smoothness and best milling performance
- Precision flat guide and powerful servo drives for high rapid traverse speeds in all axes and high workpiece loads
- High economic efficiency due to extensive standard equipment and a wide range of optional accessories
- Central lubrication for the guideways and ball screws
- Ergonomically positioned operating elements on the swivelling control panel

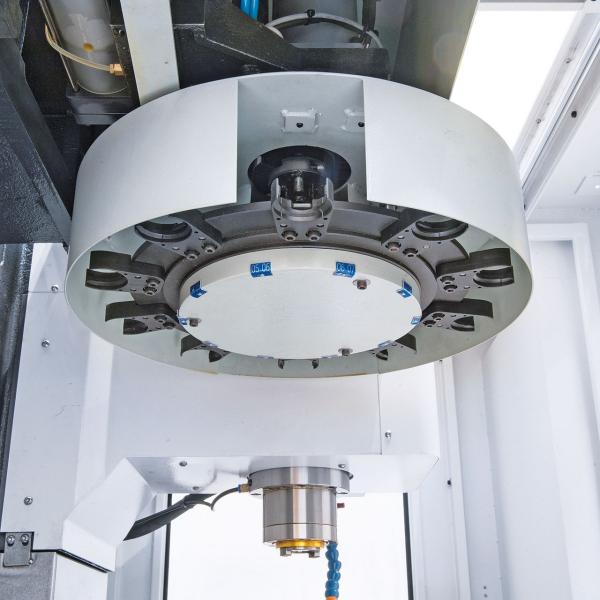

- Automatic 12-position tool changer in carousel design
- Precision recirculating ball screws with preloaded nuts in all 3 axes
- Massive, large cross table, precisely surface-machined
Scope of delivery Bernardo CNC vertical machining centre VMC 625
- Siemens Sinumerik control
- Electronic handwheel with emergency stop button
- Siemens servo drives for all 3 axes
- 12-fold tool changer
- Precision flat guide in all axes
- Automatic spindle blow-out function
- Automatic spindle orientation
- Full machine enclosure with 1 front sliding door
- CE safety glass
- Safety interlock
- LED machine light
- Automatic central lubrication
- Compressed air manual gun
- Telescopic cover in x-, y- and z-axis
- Coolant device
Technical data Bernardo CNC vertical machining centre VMC 625
|
Workspace
|
|
|
Table dimension
|
600 x 250 mm
|
|
Spindle mount
|
BT 30
|
|
Spindle speed, infinitely variable
|
60 - 8000 rpm
|
|
Travel x-axis
|
410 mm
|
|
Travel y-axis
|
250 mm
|
|
Travel z-axis
|
400 mm
|
|
Distance spindle nose - table surface
|
70 - 470 mm
|
|
Outreach
|
285 mm
|
|
Table load capacity
|
100 kg
|
|
T-slots (number / width / spacing)
|
3 / 14 mm / 75 mm
|
|
Feed
|
|
|
Working feed x-, y- and z-axis
|
2,5 - 3000 mm/min
|
|
Rapid traverse x- and y-axis
|
10.000 mm/min
|
|
Rapid traverse z-axis
|
10.000 mm/min
|
|
Accuracies
|
|
|
Positioning accuracies
|
± 0,005 mm
|
|
Repeatability
|
± 0,003 mm
|
|
Tool carrier
|
|
|
Number of tool places
|
12 pcs.
|
|
Tool size Ø x L max.
|
92 x 150 mm
|
|
Tool weight max.
|
5 kg
|
|
Tool change time, tool / tool
|
7 sec.
|
|
Motor power spindle motor
|
3.7 kW
|
|
Machine dimension (W x D x H)
|
1900 x 1800 x 2000 mm
|
|
Weight approx.
|
2000 kg
|
