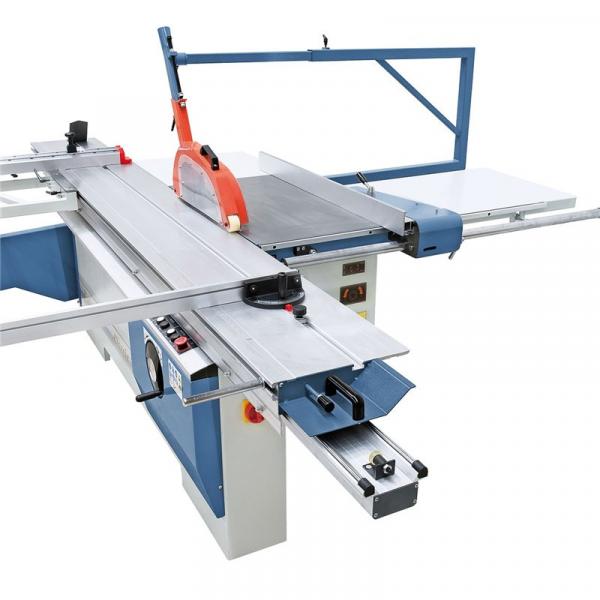

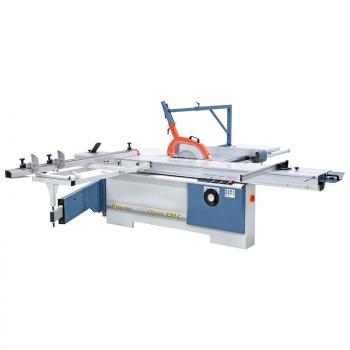

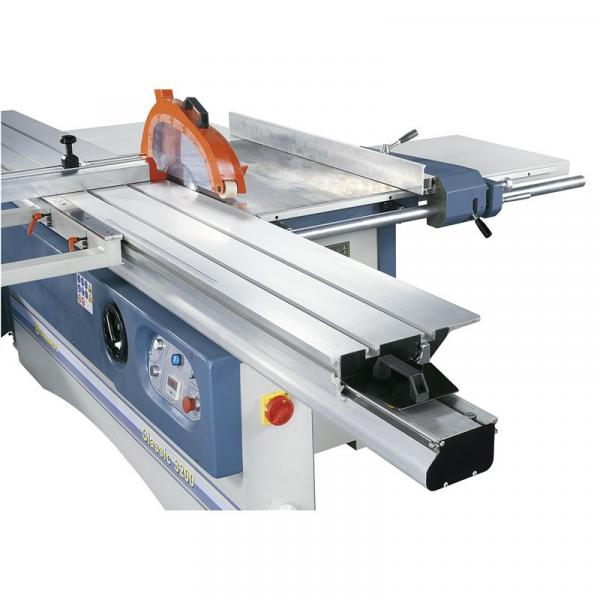

The Classic 3200 circular saw with tiltable saw blade meets all the requirements of modern craftsmanship and is the ideal machine for the cost-conscious small and medium-sized business. Both the robust construction and the generous dimensioning of the machine offer the best working conditions when cutting solid wood or large panels; decorative panels can also be processed effortlessly with the help of the scoring device (standard).
Features Bernardo Classic 3200 sliding table saw
- Aluminium sliding table with hardened guide rails
- For placing larger panels, equipped with table extension and widening as standard
- Stable extension table for processing large and heavy panels without additional assistance
- Powerful drive motor ensures optimum cutting performance even during prolonged operation
- User-friendly reading of the desired degree setting directly on the handwheel
- Scoring unit with its own drive included in the scope of delivery

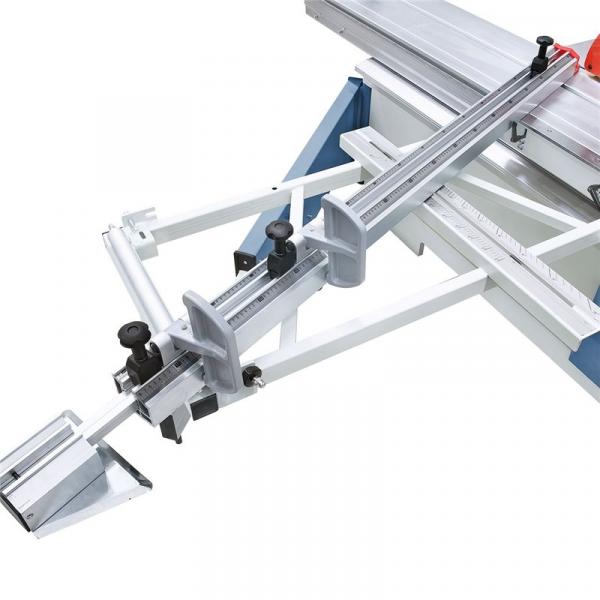

- Extendable telescopic fence (up to 3100 mm), can be mounted on the front and rear of the cantilever table
- Stable saw unit guarantees vibration-free and precise work
- Machine body consisting of a torsion-resistant steel/cast iron combination
- Foldable rip fence with stable 40 mm round bar guide
Available optional accessories Bernardo Classic 3200 sliding table saw
- Eccentric clamp (Art.No.:09-1425)
- Pneumatic clamping device (Art.No.:09-1426)
- 3-piece saw blade set 315 mm, in aluminium case (Art.No.:17-1653)
- TCT circular saw blade 300 x 3.2 x 30 mm, Z96 (Art.No.:18-1001A)
- Scoring saw blade 120 x 20, Z 24 (Art.No.:18-1004)
- Extraction unit DC 500 E / 400 V (Art.No.:12-2066)
- PVC spiral suction hose diam. 100 mm (10 m) (Art.No.: 12-1070)
- PU spiral suction hose diam. 100 mm (6 m) (Art.No.:12-1077)
- Automatic switch-on ALV 10 / 1M (Art.No.:12-1150)
- Digital protractor Level Box (Art.No.:31-1041)
Scope of delivery Bernardo Classic 3200 sliding table saw
- Saw blade guard with infeed roller
- Trimming shoe
- Table extension
- Extendable telescopic fence
- Longitudinal stop flaps
- Boom table with roller
- Sliding stock
- Scoring unit with independent motor
- Operating tool
Technical data Bernardo Classic 3200 sliding table saw
|
Table dimension
|
990 x 570 mm
|
|
Format table
|
3200 x 360 mm
|
|
Trimming length
|
3200 mm
|
|
Max. Saw blade diameter
|
315 x 30 mm
|
|
Max. Cutting height 90° / 45°
|
95 / 64 mm
|
|
Cutting width at rip fence
|
1200 mm
|
|
Table height
|
880 mm
|
|
Table extension
|
565 x 600 mm
|
|
Table extension
|
605 x 645 mm
|
|
Boom table with roller
|
1140 x 860 mm
|
|
Main saw blade speed
|
4000 / 6000 rpm
|
|
Speed scoring saw blade
|
8000 rpm
|
|
Diameter scoring saw blade
|
120 x 20 mm
|
|
Suction connection Ø
|
100 mm
|
|
Motor output power S1 100%
|
4.0 kW (5.5 hp)
|
|
Motor input power S6 40%
|
5.5 kW (7.5 hp)
|
|
Scoring motor power
|
0,75 kW
|
|
Voltage
|
400 V
|
|
Machine dimension (W x D x H)
|
3200 x 3130 x 1540 mm
|
|
Weight approx.
|
850 kg
|
